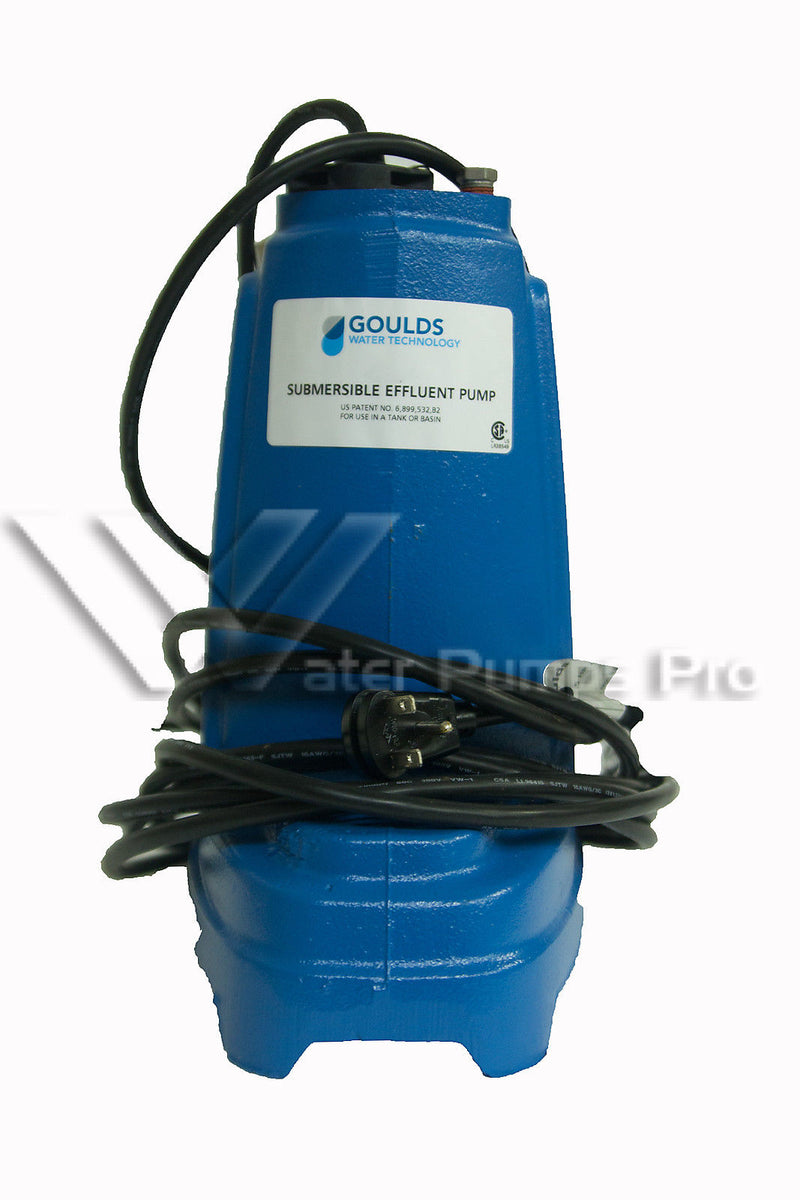

Goulds PE31M 1/3 HP, 115V Submersible Effluent Pump New Model:[PE41M]

This item is obsolete

Goulds PE31M 1/3 HP, 115V Submersible Effluent Pump 1/2" Solids, 12 Amps, No Switch FEATURES Corrosion resistant construction Cast iron body Thermoplastic impeller and cover. Upper sleeve and lower heavy duty ball bearing construction. Motor is permanently lubricated for extended service life. Powered for continuous operation. All ratings are within the working limits of the motor. Quick disconnect power cord, 20' standard length, heavy duty 16/3 SJTW with 115 volt grounding plug. Complete unit is heavy duty, portable and compact. Mechanical seal is carbon, ceramic, BUNA and stainless steel. Stainless steel fasteners APPLICATIONS Specially designed for the following uses: Mound Systems Effluent/Dosing Systems Low Pressure Pipe Systems Basement Draining Heavy Duty Sump/Dewatering SPECIFICATIONS Pump - General: Discharge: 11/2" NPT Temperature: 104F (40C) maximum, continuous when fully submerged. Solids handling: 1/2" maximum sphere. Automatic models include a float switch. Manual models available. Pumping range: see performance chart or curve. PE31 Pump: Maximum capacity: 53 GPM Maximum head: 25 TDH MOTOR General: Single phase 60 Hertz 115 volts Built-in thermal overload protection with automatic reset. Class B insulation Oil-filled design PE31 Motor: .33 HP, 3000 RPM 115 volts Shaded pole design
