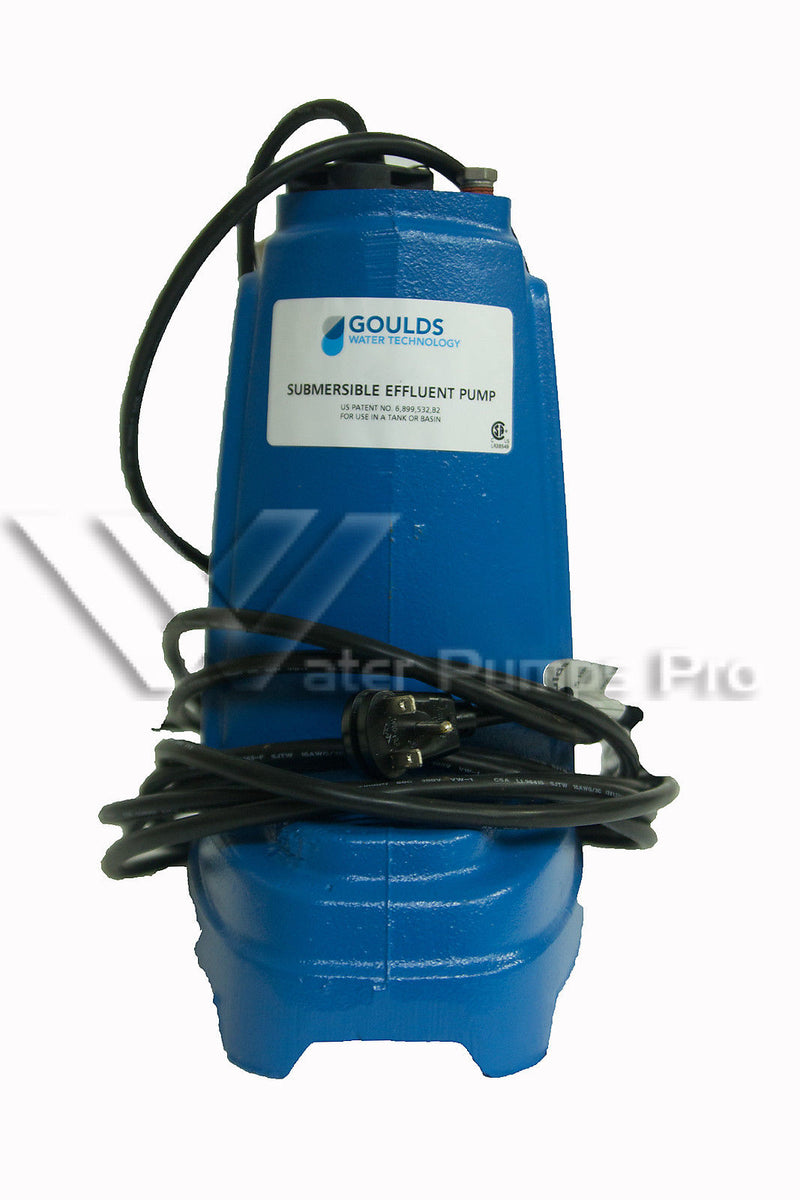

Goulds PE41M – Submersible Effluent Pump, 4/10 HP, 115 Volts, 1 Phase, 1-1/2" NPT Discharge, 61 GPM Max, Manual/No Switch, 20 ft Cord
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
The Goulds PE41M is a 4/10 HP, 115-volt, single-phase submersible effluent pump, equipped with no float switch (manual operation only). It is built for continuous submerged operation, handling solids up to 1/2" in diameter through a 1-1/2" NPT discharge connection.
- Horsepower: 4/10 HP
- Voltage: 115V, Single-Phase
- Amps: 7.5
- Minimum Circuit Breaker: 15 A
- Maximum Capacity: 61 GPM
- Maximum Total Head: 29 ft TDH
- Discharge Connection: 1-1/2" NPT
- Maximum Solids Handling: 1/2"
- Minimum Basin Diameter: 18"
- Power Cord Length: 20 ft
- Shipping Weight: 31 lbs
- Maximum Liquid Temperature: 104°F (40°C) continuous
Construction & Features:
- Construction: Corrosion resistant, cast iron body
- Impeller & Cover: Thermoplastic
- Bearings: Upper sleeve and lower heavy duty ball bearing construction
- Motor: Oil-filled, permanently lubricated, permanent-split-capacitor (PSC) design, powered for continuous operation
- Shaft: High strength carbon steel
- Power Cord: Quick-disconnect, heavy duty 16/3 SJTW
- Mechanical Seal: Carbon, ceramic, BUNA, and stainless steel
- Fasteners: Stainless steel
Applications: Mound systems, effluent/dosing systems, low pressure pipe systems, basement draining, and heavy duty sump/dewatering.
Installation note: this pump must remain fully submerged during operation for proper motor cooling and lubrication. Wiring must be performed by a qualified electrician in accordance with local codes and the National Electrical Code, using a dedicated, properly grounded circuit sized to the minimum circuit breaker shown above.
