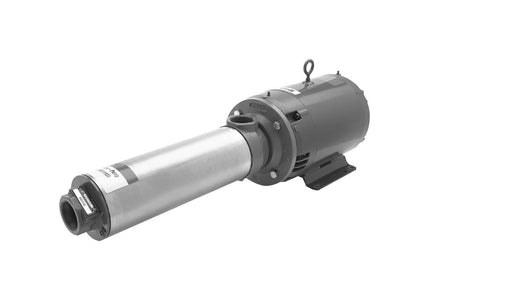

Goulds 70HB23012PE 3HP Multi Stage Centrifugal Booster Pump TEFC Model replaced by [70HB23012]
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
This item is obsolete
3HP, 115-208/230 Volts, Single Phase, TEFC Enclosure High Pressure, Multi-Stage Centrifugal Booster Premium Efficiency Pump
* Premium efficiency version for requirement by Department of Energy Regulation
The 45HB and 70HB High Pressure Centrifugal Booster pumps feature a multi-stage design to provide steady, quiet and vibration-free operation for years of trouble-free service. The pumps precision molded glass-filled thermoplastic impellers and diffusers allow for high efficiency. Bowls are constructed of 300 series stainless steel with Rabbet lock for positive alignment with no gaskets required. Mechanical Seal are constructed of carbon/ceramic faces. BUNA elastomers 300 series stainless steel metal parts. Motoris a close-coupled design. The ball bearings carry all radial/axial thrust loads. It is designed for continuous operation. All ratings are within working limits of the motor.
- WARNING: This is a booster pump. It has no lift capability. DO NOT RUN DRY. DO NOT DEADHEAD The 45HB/70HB are used for residential, and commercial applications such as high rise buildings, reverse osmosis systems, high pressure cleaning, spraying systems, booster service.
Specifications
- Horsepower: 3
- Voltage: 115-208/230
- Phase: Single
- Stages: 2
- Enclosure: TEFC
- Capacities: up to 100 GPM
- Total heads: up to 760 feet
- Pipe Connections: 2" NPT Discharge, 2" NPT Suction
- Maximum Temperature: 160F (71C)
- Inlet pressure: 100 max psi
