Goulds 70HB23012 High Pressure Booster Pump – 3 HP, 2-Stage, Single Phase, TEFC, 115/208-230V
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.

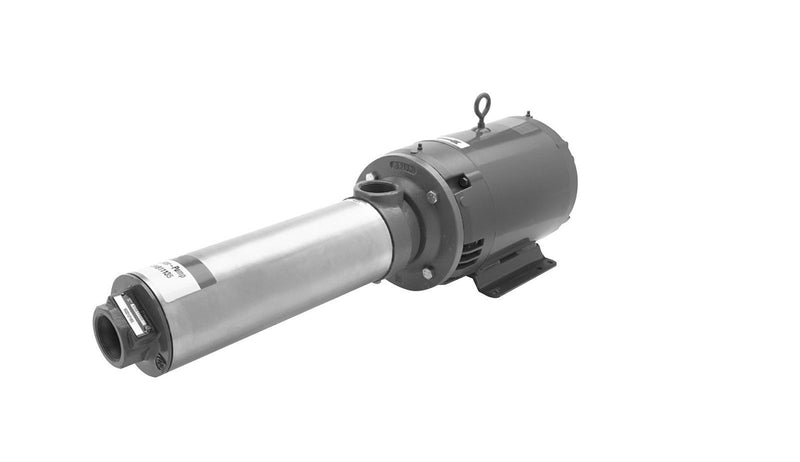

The Goulds 70HB23012 is a 3 HP, 2-stage 70HB high pressure centrifugal booster pump in a close-coupled design, built for capacities to 100 GPM and heads to 760 feet across the 70HB line. This model delivers up to 100 GPM and 145 feet of total dynamic head.
- Horsepower: 3 HP
- Stages: 2
- Phase: Single Phase
- Voltage: 115/208-230 V, 60 Hz
- Enclosure: TEFC (Totally Enclosed Fan Cooled)
- Speed: 3500 RPM
- Maximum Capacity: 100 GPM
- Maximum Head: 145 feet
- Motor Frame: 184
- W.E.L. (Overall Length): 10-3/8"
- Pipe Connections: 2" NPT suction, 2" NPT discharge
- Maximum Temperature: 160°F (71°C)
- Maximum Inlet Pressure: 100 PSI
- Shipping Weight: 99 lbs
Construction & Features:
- Design: Multi-stage design provides steady, quiet, vibration-free operation for years of trouble-free service
- Impellers & Diffusers: Glass-filled thermoplastic, precision molded for high efficiencies
- Bowls: 300 series stainless steel with rabbet lock for positive alignment -- no gaskets required
- Mechanical Seal: Carbon/ceramic faces, BUNA elastomers, 300 series stainless steel metal parts
- Motor: Close-coupled design, ball bearings carry all radial/axial thrust loads, designed for continuous operation within the motor's working limits
Applications: Wide variety of industrial, commercial, and agricultural uses, especially high rise buildings, multiple dwelling buildings, reverse osmosis systems, high pressure cleaning, spraying systems, and booster service.
WARNING: This is a booster pump. It has no lift capability. Do not run dry. Do not deadhead.
