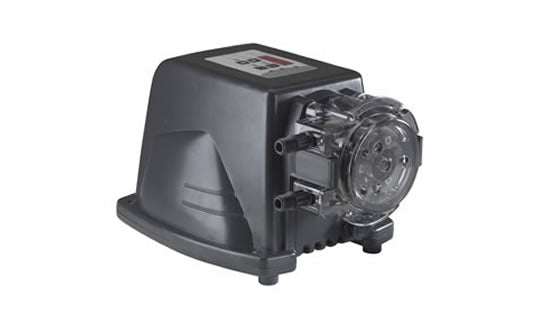

Stenner SVP4H2A3T1AA SVP4 Variable Speed Pump – 17 GPD, 100 PSI, 120V
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
This item is obsolete. Contact us for replacement
SVP4H2A3T1AA — Stenner SVP4 Variable Speed Peristaltic Metering Pump (4-20mA), 17 GPD, 100 PSI, 120V.
The Stenner SVP Series moves beyond the Classic line's fixed-speed motor to a digitally controlled, variable-speed peristaltic design, packaged in a rugged, chemical-resistant polycarbonate housing with a heavy-duty gear motor and an LED display. The SVP4 is built to take direct 4-20mA input from pH and ORP controllers and other process instrumentation, automatically adjusting motor speed to hold proper water chemistry, and it can be switched out of 4-20mA mode for manual keypad control whenever you need it. Like every Stenner peristaltic pump, the solution stays inside the tube and never touches the motor or gearing, so the SVP4 self-primes against full working pressure and shrugs off off-gassing chemicals without losing prime. It's built for demanding, continuous-duty applications in municipal and industrial water treatment, wastewater discharge control, and commercial pool water chemistry.
Specifications:
- Maximum Output: 17 GPD
- Maximum Working Pressure: 100 PSI
- Motor Voltage: 120V, 60Hz
- Suction/Discharge Tubing: 3/8" Santoprene
- Responds directly to a 4-20mA signal from pH, ORP, or other process controllers
- External signal port can be overridden for manual keypad control at any time
- Rugged polycarbonate housing with a heavy-duty gear motor
- Self-priming against maximum working pressure; no foot valve required
- Won't lose prime or vapor-lock on off-gassing solutions, and can run dry
