Stenner S40120342P Proportional Injection System – 40 GPD, 100 PSI, 120V
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
S40120342P — Stenner Proportional Injection System, 40 GPD, 100 PSI, 120V.

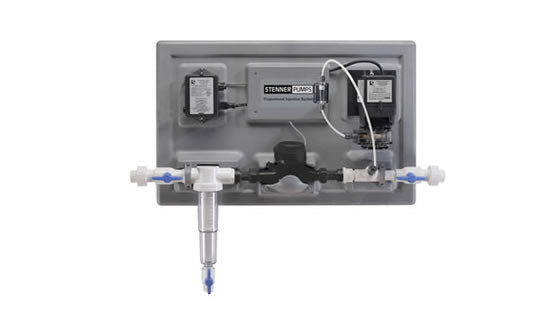

Stenner's Proportional Injection System packages everything needed to dose in exact proportion to water usage into one factory-assembled unit: a Classic Series single-head fixed-output pump, a PCM (Pump Control Module), and a lead-free 3/4" plastic dry-contact water meter, all mounted on a heavy duty panel with the cords and wiring routed out of sight for a clean install. The water meter sends a pulse to the PCM for every increment of water that passes, and the PCM actuates the pump for a set duration each time, so chemical feed rises and falls automatically with flow instead of running on a fixed timer. A spin-down filter with 30 and 100 mesh screens protects the system, PVC unions make installation and service straightforward, and a built-in flow indicator gives a visual confirmation the system is pumping. The water meter itself is WQA certified to ANSI/NSF 372 and is available in 1, 2, or 4 pulses per gallon to match your dosing resolution.
Specifications:
- Maximum Output: 40 GPD
- Maximum Working Pressure: 100 PSI
- Motor Voltage: 120V, 60Hz
System Includes:
- Classic Series single-head fixed-output pump
- PCM (Pump Control Module)
- Lead-free 3/4" plastic dry-contact water meter, WQA certified to ANSI/NSF 372
- Flow indicator for visual confirmation of pumping
- Spin-down filter with 30 and 100 mesh screens
- PVC unions for easy installation and removal
- Heavy-duty panel and wall-mounting bracket with concealed cord routing
