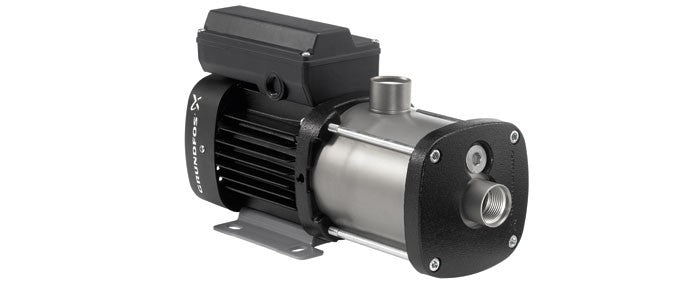

Grundfos #97568203 Stainless Steel 0.8HP, 1PH, 115/230V

Grundfos #97568203, Multistage Centrifugal Pumps, CM1-I Stainless Steel, 0.8 Horse Power, 1 Phase,

• 115/230 Volts, AQQV Shaft Seal (Silicon Carbide/Silicon Carbide FKM Seals)
• Overview
• The horizontal multistage pump CM (=Centrifugal Modular) has been created with compactness and modularity as two of its central features, making numerous configurations possible. The pump is basically composed of a series of interchangeable modules, all of which have been designed to work together seamlessly, no matter what the application.
• The pumps are of the close-coupled type.
• CM pumps are fitted with mains-operated motors and have mechanical shaft seals.
• The CM pumps are available in cast iron or stainless steel (AISI 304/DIN 1.4301 stainless steel, which is for water and non-corrosive liquids, and AISI 316/DIN 1.4401 stainless steel, which offers a high degree of corrosion protection against aggressive liquids).

Applications

• The CM is primarily used as a built-in pump in OEM solutions and domestic boosters.
• It is compact, noiseless, reliable and flexible, and this make it an optimal solution for installation and interaction with other components in a large system.
• It can be installed in systems or used as a stand-alone pump
• Features and benefits
• Compact design
• Modular construction/customised solutions
• Worldwide usage
• High reliability
• Service-friendly
• Wide performance range
• Low noise level
• High-performance hydraulics
• Electro-coated cast-iron parts
• Customised solutions
• Grundfos motor.
