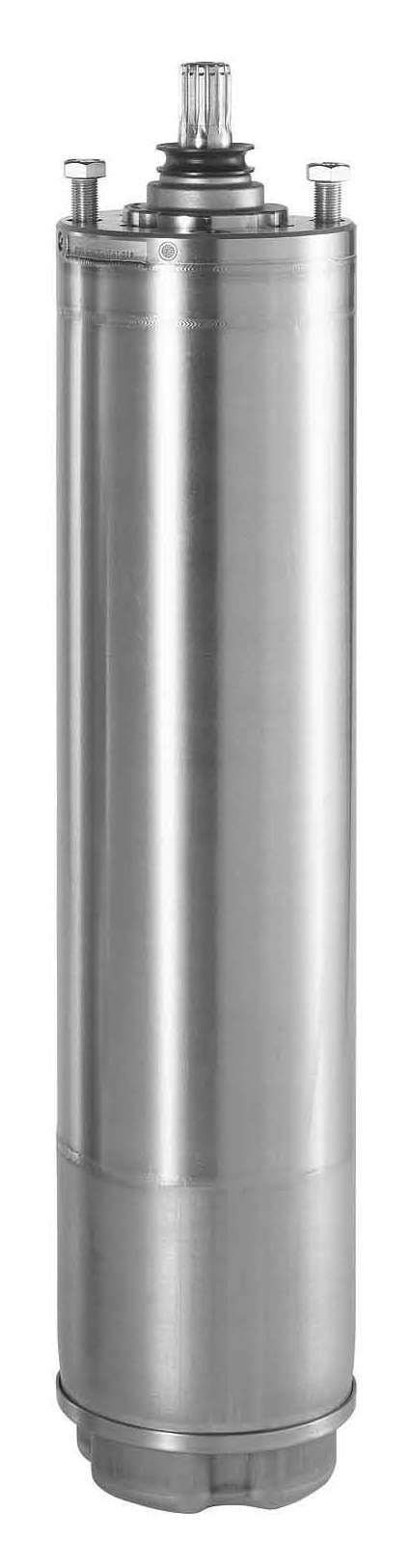

Grundfos 96415745 Industrial Submersible Motor,10HP, 3P 440/460V
See price in cart
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
This item is obsolete. Contact us for replacement
Grundfos 96415745 Industrial Submersible Motor, 10 Horse Power, 3Phase, 440/460 Volts, 4400lbs Max Thrust.
Industrial Submersible Motors
- Features
- • Complete Range of Motors from 7 1/2 - 30 Horse Power and 3 Phase.
- • Designed for 6" Larger Wells
- • Corrosion Resistance All Stainless Steel Exterior Construction
- • Stainless Steel Splined Shaft
- • Stator Windings Hermetically Encapsulated in Stainless Steel
- • Water Lubricated
- • Internal Water Circulation System Enhances Motor Cooling
- • No Cooling Sleeve Needed up to 85°F
- • Rated up to 104°F with 1/2 ft./sec. flow Past the Motor
- • Filter Check Valve
- • Michell Type Carbon/Ceramic Thrust Bearing
- • 4400 lb. Thrust Rating
- • Pressure Equalization Diaphragm
- • Sand Slinger
- • Tungsten Carbide/Ceramic Shaft-Seal, for Long Life in Sandy Applications
- • Steel Bearing Support
- • Equipped with Tempcon Temperature Sensor
- • 3 Ph Motors Work with MTP 75 and CU 3 Motor Protection System
- • Replaceable Motor Lead
- • NEMA Mounting Dimensions
- • CSA Certified
- Special Construction Features
- • Available in a 904L Grade of Stainless Steel and/or FKM, for aggressive Applications
- • Designed for Long Life and Lower operating Costs.
