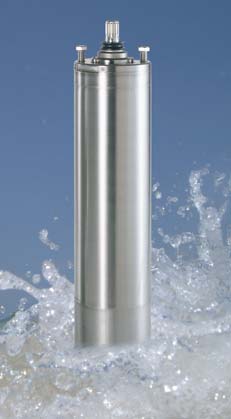

Grundfos 96168770 GSS Submersible Motor, 30HP, 3PH, 440/460V
See price in cart
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
This item is obsolete. Contact us for replacement
Grundfos 96168770 Grundfos Sand Solutions Submersible Motor, 30 Horse Power, 3Phase, 440/460 Volts, 6182lbs Max Thrust.
GSS Features and Benefits
- • SIC/SIC Mechanical Shaft Seal
- • Range of motors from 7.5 - 40HP 3PH
- • Corrosion Resistant All Stainless Steel Exterior Construction
- • Stainless Steel Spline Shaft
- • Stator Windings Hermetically Encapsulated in Stainless Steel
- • Water Lubricated
- • Internal Water Circulation System Enhances Motor Cooling
- • Rated up to 104 Degrees F with .5 ft./sec. Flow Past Motor
- • Michell Type Carbon/Ceramic Thrust Bearing
- • Pressure Equalization Diaphragm
- • Sand Slinger
- • Epoxy Coated Bearing Support
- • Equipped with Tempcon Temperature Sensor as Standard
- • Works with MTP 75 and CU3 Motor Protection System
- • Replaceable Motor Lead
- • NEMA Mounting Dimensions
