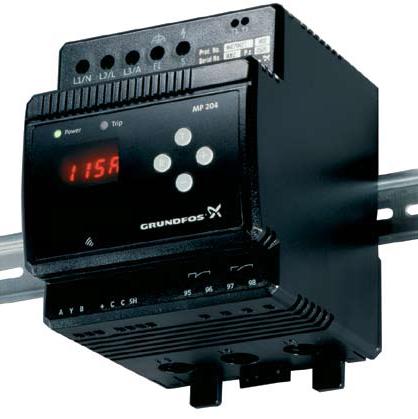

Grundfos #96079927 MP204, 115-460V, 3-120 Amp Range

Grundfos #96079927 MP204, 115-460V, 3-120 Amp Range

• Complete package from one supplier. Grundfos is one of the very few pump manufacturers in the world to offer the full package of pumps, pump motors, and motor protection, ensuring seamless integration with your TP pumps.
• Simple set-up a priority Simple installation and set-up was a major priority for the MP 204 designers. Mounting is done by means of four screws or by sliding the unit onto a mounting rail, and the entire set-up can be completed in just two minutes. The simple menu is used to set four parameters: rated motor amps, nominal voltage, trip class, and no. of motor phases. After just 120 seconds of setting, the unit is ready to go. Access more functions with the R 100 remote control The R 100 remote control from Grundfos gives you access to even more options. For example, you can adjust factory settings, carry out service and troubleshooting, and get readouts of data stored in the MP 204 unit.

Ready for bus communication

• While many customers require motor protection only,the MP 204 is also prepared for expansion. It allows for monitoring and communication via GENIbus – a special Grundfos BUS for exchange of pump data, alarms, status information, and setpoins. This enables users to connect the MP 204 to e.g. SCADA systems. Handles currents up to 1,000A On its own, the MP 204 will handle currents up to 120A. For applications involving currents up to 1,000A,the unit can be fitted with external current transformers available from stock at Grundfos.
