Grundfos 47U00644, HS150 2020, 1 PH, 115/208-230V, 2HP
See price in cart
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
This item is obsolete. Contact us for replacement

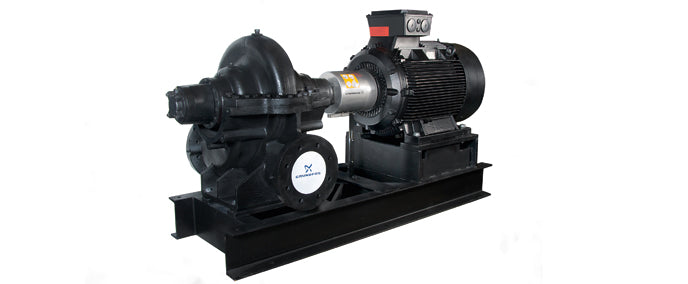

Grundfos Pumps HS150 2020 2 HP 1PH TEFC End Suction Centrifugal Pump Model 47U00644, 115/208-230 Volt, 2" - 1 1/2" Suction / Discharge
- Pumped liquids for HS End Suction Pumps should be thin, clean, non-aggressive and non-explosive liquids without solid particles or fibers. The pump is fitted with a heavy-duty, Grundfos-specified motor.
- Grundfos HS End Suction Series Operating conditions:
- Liquid temp: -5F to +180F (-20C to +82C) continuous -5F to +211F (-20C to +99C) intermittent
- Max. ambient temp.: +104F (+40C)
- Max. operating press.: 125 psi (8.6 bar)
- Minimum inlet press.: According to the NPSHR curve plus a safety margin of 3 ft.
- Maximum inlet press.: Limited by maximum operating pressure.
