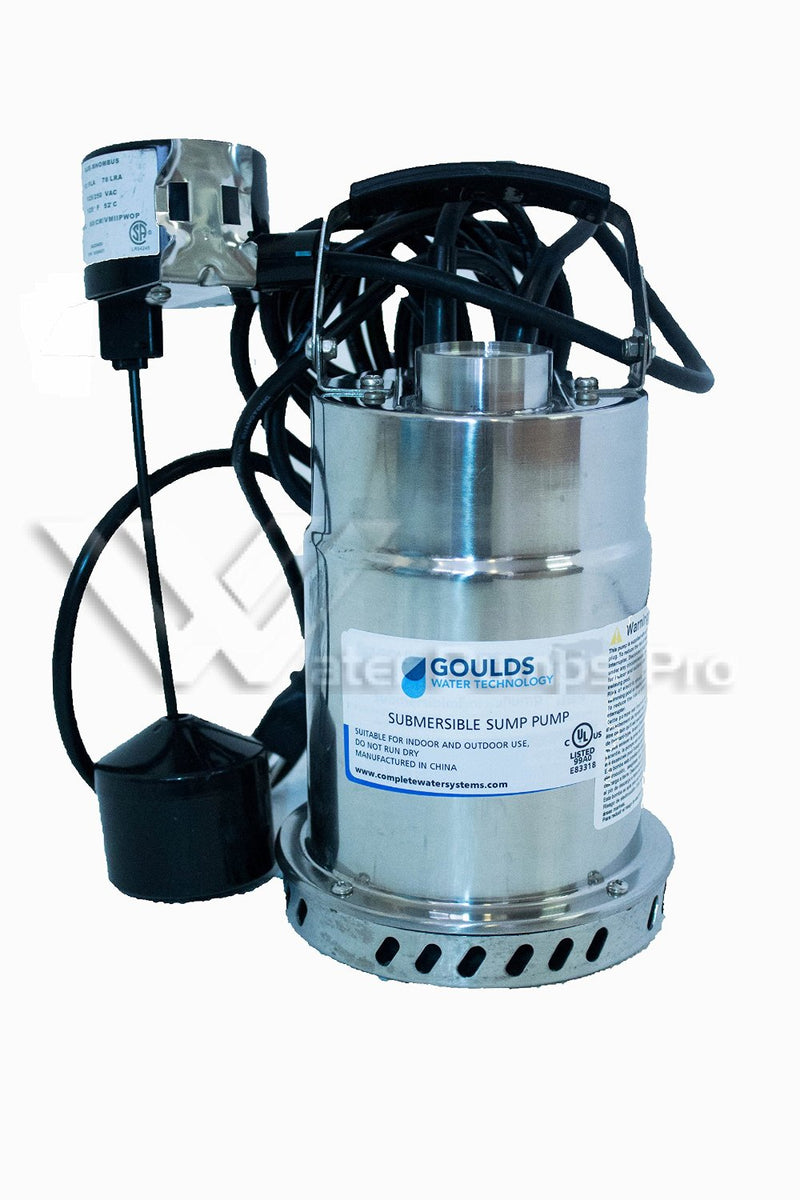

Goulds STS21V 1/4HP 115V Submersible Sump Pump
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
This item is obsolete
Call for replacement
Goulds STS21V 1/4HP 115V Submersible Sump Pump 1 Phase, 2.5 Max Amps, Vertical Float Switch, 20' Cord FEATURES Corrosion-resistant construction. A mechanical seal protects the motor. It consists of ceramic/silicon carbide seal faces with BUNA elastomers. Glass-filled thermoplastic impeller and motor cover. Upper and lower heavy duty ball bearing construction. Air-filled motor mounted in aluminum housing. Motor is permanently lubricated for extended service life and is powered for continuous operation. All ratings are within the working limits of the motor. Includes vertical float switch and mounting pipe. Adjustable for various liquid levels. Complete unit is lightweight, portable and easy to service. APPLICATIONS Specially designed for the following uses: Basement draining Water transfer Dewatering Filtered Effluent SPECIFICATIONS Discharge size: 1 1/2" NPT. Capacities: to 38 GPM. Maximum head: 25 feet TDH. Maximum solids: 3/16" spherical Temperature: 104F (40C) maximum liquid temperature. Mechanical seal: ceramic/silicon carbide faces with BUNA elastomers. MOTOR Single phase, 3450 RPM, 60 Hz STS21V, 1/4 HP, 115 V, 2.5 amps. Built-in thermal overload protection with automatic reset. Permanent-split-capacitor type. Class B insulation. Air filled design. Power cord length: 20 feet with NEMA 5-15P plug.
