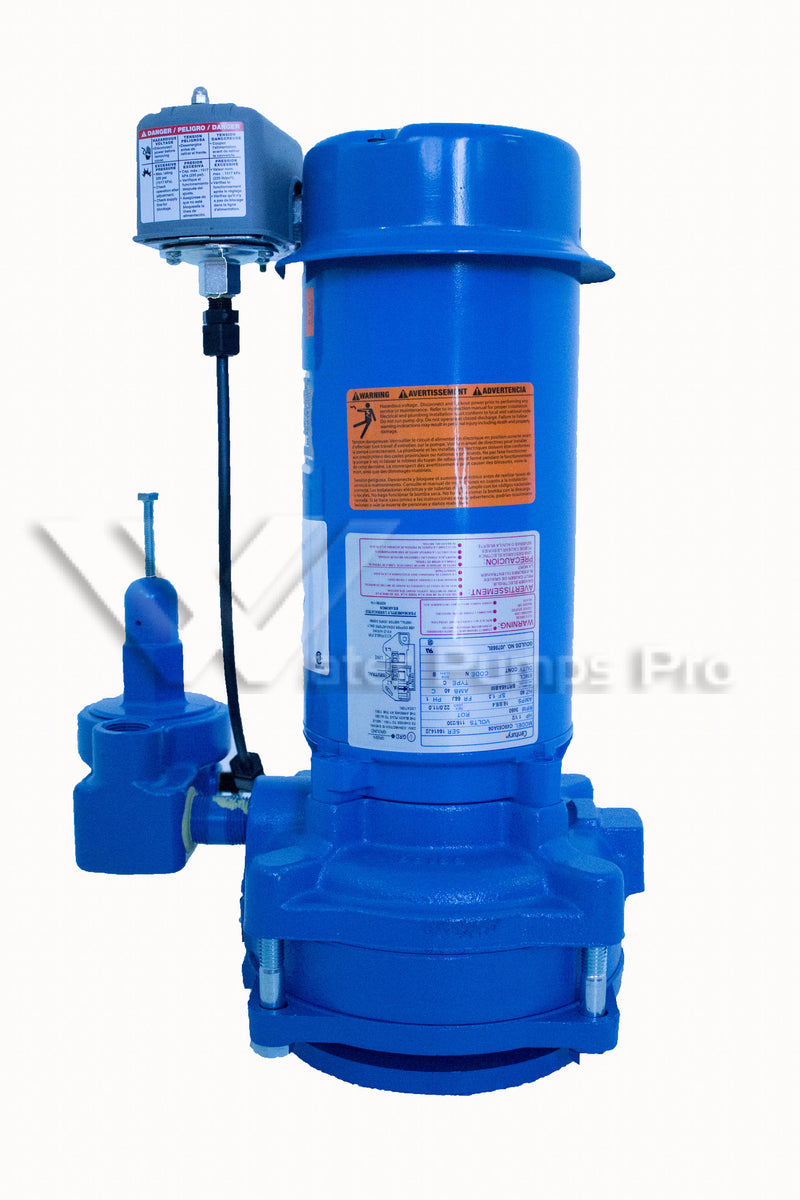

Goulds SJ07 Vertical Deep Well Jet Pump – 3/4 HP, 2-Stage, Single Phase, 115/230V, NSF/ANSI 61 Certified

The Goulds SJ07 is a 3/4 HP vertical deep well jet pump, engineered to deliver high capacities at deeper well settings. It uses a stainless steel hex-shaft drive with glass-filled thermoplastic impellers and an adjustable automatic pressure control valve to guarantee maximum capacity at all times, and is certified to NSF/ANSI 61 & 372 for drinking water use.

• Horsepower: 3/4 HP
• Stages: 2
• Phase: Single phase
• Voltage: 115/230 V, 60 Hz, capacitor start
• Speed: 3500 RPM
• Pressure Switch: AS4, preset 30-50 PSI
• Pipe Connections: 1" NPT drive (pressure), 1-1/4" NPT suction, 1" NPT discharge
• Minimum Well Casing I.D.: 4"
• Maximum Temperature: 140°F
• Height: 15-1/2"
• Length x Width: 14" x 8"
• Shipping Weight: 58 lbs
• Certification: CSA Listed, NSF/ANSI 61 & 372 (jet pump and shallow well components only; deep well components are not listed)

Construction & Features:

• Impellers: Glass-filled thermoplastic, corrosion resistant
• Wear Rings & Cover Plates: Stainless steel, replaceable
• Shaft: Stainless steel hex shaft for positive impeller drive, eliminates clearance adjustments
• Casing: Rugged cast iron construction with electro-coat paint applied inside and out, then baked on
• Serviceability: Can be taken apart for service by removing four bolts
• Priming: Top-mounted vent plug allows air to escape from the seal cavity during initial priming
• Pressure Control: Adjustable automatic pressure control valve with by-pass check valve to equalize system pressure and help prevent loss of prime
• Built-In Overload: Automatic reset

Applications: Specifically designed for homes, farms, and cottages requiring a twin pipe or packer-style deep well jet pump system.

Requires a Deep Well Jet Assembly Package (twin pipe or packer) and, for packer systems, a well casing adapter (AWD2 or AWD3) -- sold separately. Not rated for 50 Hz service.
