Goulds S4UGR84 24" Dia. 84" Deep Simplex guide rail system
See price in cart
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.

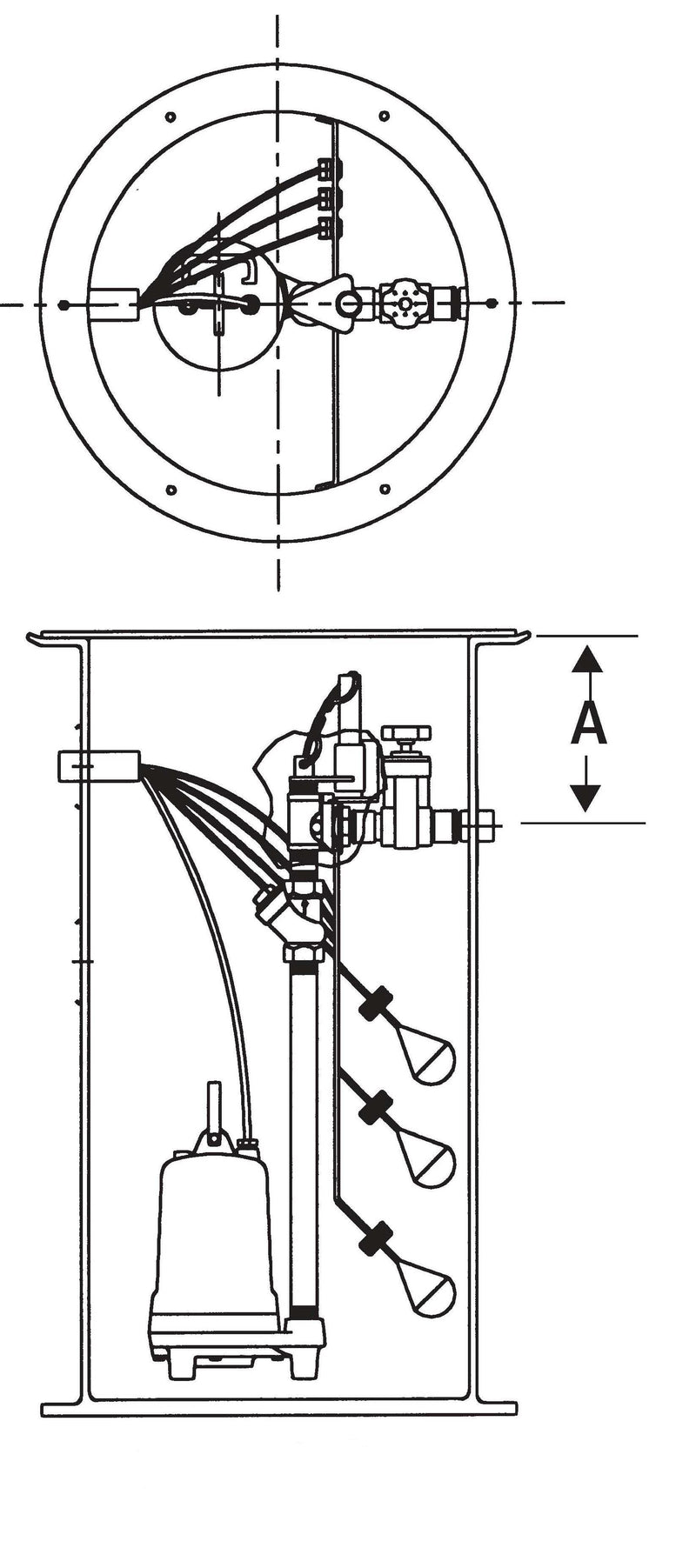

Goulds S4UGR84 is a fully assembled simplex guide rail basin system on a 24 inch diameter, 84 inch deep fiberglass basin, where the pump is suspended by its discharge and rides a PVC guide pipe with an integral stainless steel bracket for removal without entering the basin.
- Configuration: Simplex (1-pump)
- Basin Diameter: 24 in
- Basin Depth: 84 in
- Basin Material: Solid fiberglass, integral antiflotation ring
- Cover: Grass green solid fiberglass
- Electrical Grommet: 1.5 in
- Inlet Grommet: 4 in
- Coupling: Brass quick disconnect
- Discharge Pipe: Schedule 40 galvanized steel
- Check Valve: Cast iron ball type
- Gate Valve: Bronze
- Lifting Cable: 1/4 in stainless steel
- Guide Rail: PVC guide pipe w/ integral stainless steel bracket
Applications: Intended for deeper simplex installations that require a guide rail (slide-rail) mounting system so the pump can be raised for service without entering the basin.
