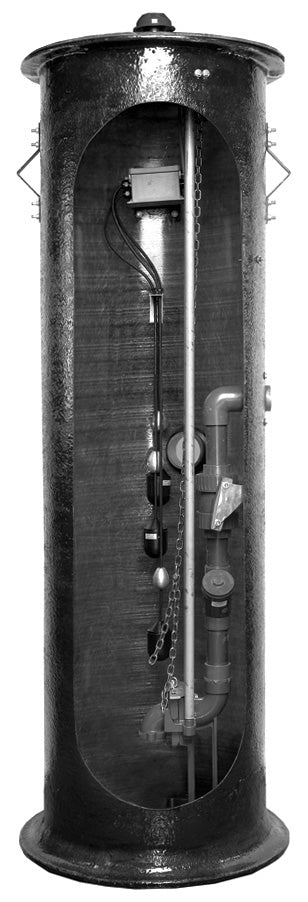

Goulds S20B3096 Simplex Assembled Basin & Guide Rail Kits
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
The item is obsolete. Contact us for replacement
The Goulds S20B3096 is a factory-assembled simplex basin and guide rail kit for packaged sewage/effluent pump station installations, sized with a 30" diameter x 96" deep basin and a 2" discharge. It ships pre-piped with valves, guide rails, and mounting hardware in place so a single pump can be installed and serviced without entering the basin.
- Configuration: Simplex (Single pump)
- Basin Diameter: 30"
- Basin Depth: 96"
- Discharge Size: 2"
- Pump Connection: 2" standard (1-1/4" and 1-1/2" available by request)
- Guide Rails: Stainless steel, with installed stainless steel float bracket
- Isolation Valve: True Union
- Inlet Hub: Cast iron (shipped loose for field installation)
Applications: Used in simplex or duplex sewage and effluent lift station packages where a pre-assembled basin and rail system is needed for quick pump installation and removal.
