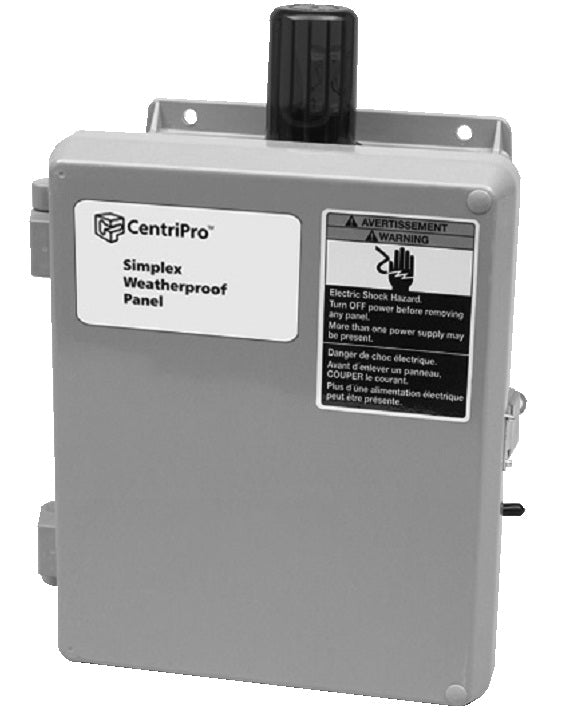

Goulds S12015FR SES Simplex Control Panel, 1 PH, 15 MA

This item is obsolete

Call for replacement

Goulds S12015FR SES Simplex Control Panel, 1 PH, 15 MA, Inner Door, ETM, Disc Floats.FEATURES - Rugged NEMA 4X construction withstands even the most severe weather conditions and prevents corrosion. Hinged door with lockable stainless steel latch for safe operation indoors and out. Dead front, full inner door for operator safety-access provided for H-O-A switch, pump run light, alarm test switch, ETM and pull-out service disconnect. High level alarm circuit with external alarm horn silence switch. Alarm test switch on inner door insures proper operation of the alarm circuit without the need to actuate the alarm float. Inside mounted pump run light.Top mounted high intensity red light provides 360° visibility. Corrosion proof alarm horn. Color coded wiring, screw type terminals, ensure ease of field servicing. Field wiring diagram, panel schematic and installation instructions included. Entire unit is UL and CUL listed. Non-modifiable – no options available. APPLICATIONS Simplex liquid level controller, automatically maintains pump operation, includes high level alarm warning for a variety of sump, effluent, sewage and water transfer ap-plications. Order No. Maximum Float Switches Running Amps (Model and Quantity) SPECIFICATIONS • Single-phase, 115 volt, 60 hertz •NEMA 4X Fiberglass Deadfront Enclosure • Full Inner Door • Elapsed Time Meter • Service Disconnect inside enclosure, pull-out type • Float Switches – included with panel: (1) A2E33, 20' SJE Pump Master Plus® (1) A2N33, 20' SJE Sensor Float® control switch •Hand-Off-Automatic (H-O-A) pump selection switch on inner door •Accepts single or dual power feed •Numbered Terminal Strip – screw type •NEMA 4X, 30 watt Red Alarm Light •NEMA 4X Alarm Horn – 95 db. with external silence switch •Alarm Test Switch on inner door •Pump Run Light on inner door •Auxiliary Alarm Contacts
