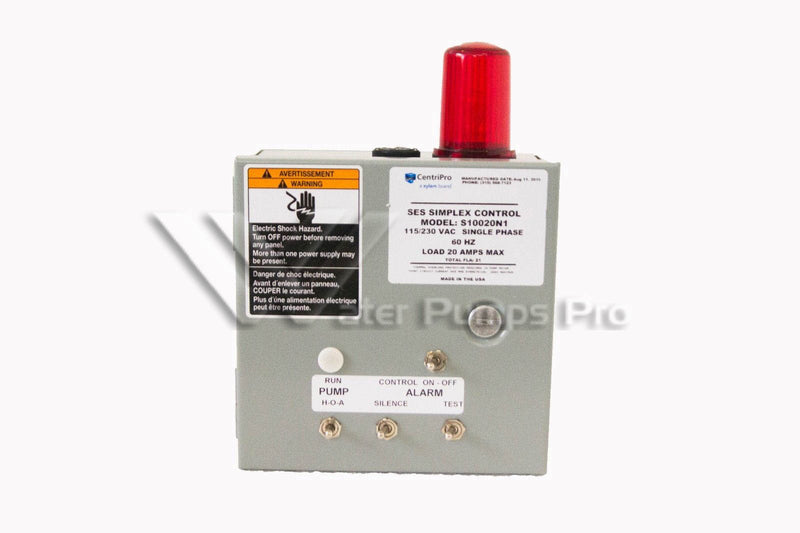

Goulds S10020N1 SES Simplex Control Panel, 1PH, NEMA 1

Goulds S10020N1 is a Simplex control panel from the SES Series, 1-phase, field adjustable for 115 or 230V, 60 Hz, 0-20 amps, in a NEMA 1 steel indoor enclosure. Indoor use only - not for use in damp, outdoor, or weatherproof locations.

• Part Number: S10020N1
• Panel Type: Simplex (SES Series)
• Phase: 1-Phase
• Voltage: Field adjustable for 115 or 230V, 60 Hz
• Amp Range: 0-20
• Enclosure Rating: NEMA 1
• Switching: Oversized magnetic contactor
• Pump Selection: 1 Hand-Off-Automatic (H-O-A) switch
• Enclosure Dimensions: Approx. 8.0" W x 8.0" H x 4.0" D
• Listing: UL and CUL Listed

Features and Benefits:

• NEMA 1 Steel Enclosure: Indoor-rated steel enclosure. Not for use in damp, outdoor, or weatherproof applications.
• Hinged Door: For safe indoor operation.
• Pump Run Light: Through-door mounted.
• Alarm Test Switch: Through-door mounted; verifies proper alarm circuit operation without opening the panel.
• Flashing Alarm Light: Top-mounted, high-intensity, 30-watt light provides 360-degree visibility.
• Alarm Horn: Pulsating, corrosion-proof alarm horn - 95db.
• Auxiliary Alarm Contacts: Provided for remote alarm connection.
• Wiring and Documentation: Color-coded wiring, screw-type terminals, and plug-in sockets ease field servicing; field wiring diagram, panel schematic, and installation instructions included.
• Power Feed Flexibility: Panel can be wired for a single power feed for pump and control circuit, or the control circuit can be wired to a separate power supply to preserve alarm integrity if the pump breaker trips.
• Listing: Entire unit is UL and CUL listed.
• Configuration: Non-modifiable - no options available on this model.

Applications: Superior quality simplex liquid level controller that automatically maintains pump operation. Includes a high-level alarm for a variety of sump, effluent, sewage, and water transfer applications. Float switches are sold separately - the type and quantity needed depend on basin depth and panel location.
