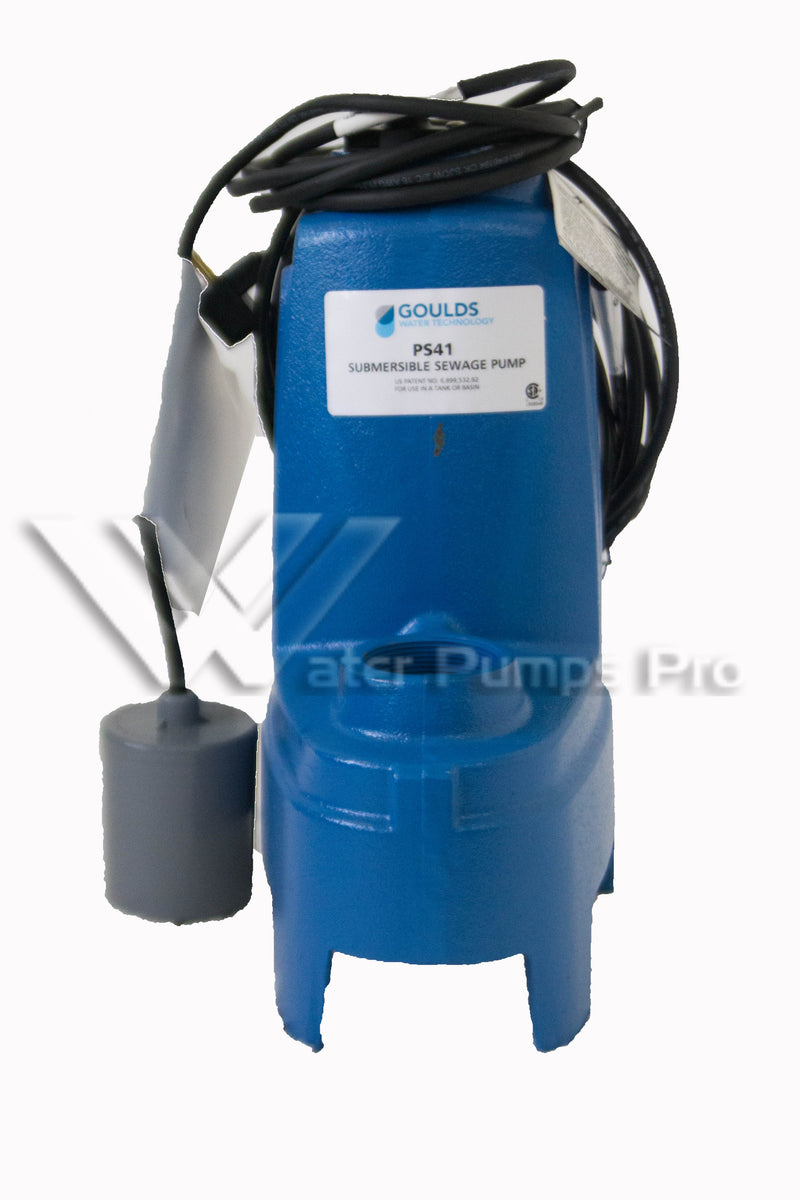

Goulds PS41P1 - 0.4 HP 115V Single-Phase Submersible Sewage Pump
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
The Goulds PS41P1 is a 0.4 HP, 115V single-phase submersible sewage pump from Goulds PS Series, part of Xylem’s Goulds Water Technology line. It is rated to handle solids up to 2" spherical through a 2" NPT discharge, running at 3400 RPM. The table below shows this pump’s flow rate at four fixed total dynamic head (TDH) points, so you can match it to your specific lift and distance requirements.
- Horsepower: 0.4 HP
- Voltage / Phase: 115V Single-Phase, 60 Hz
- Speed: 3400 RPM
- Discharge: 2" NPT
- Solids Handling: 2" spherical
- Liquid Temperature: 104°F (40°C) maximum, continuous, fully submerged
- Power Cord: 10 ft or 20 ft standard lengths
Flow Rate at Fixed Head (TDH):
- 10 ft. TDH: 93 GPM
- 15 ft. TDH: 57 GPM
- 20 ft. TDH: 26 GPM
- 25 ft. TDH: not rated at this head (shutoff head is approximately 23 ft)
Construction:
- Body: cast iron for corrosion-resistant durability
- Impeller & Cover: thermoplastic
- Mechanical Seal: carbon vs. ceramic sealing faces, BUNA-N elastomers, stainless steel metal parts
- Bearings: upper sleeve and lower heavy-duty ball bearing construction, permanently lubricated
- Fasteners: stainless steel
Applications: Residential sewage systems, heavy-duty sump/dewatering, and water transfer.
Warnings: This pump must be connected to electrical service protected by a Ground Fault Circuit Interrupter (GFCI) where required by code. Failure to do so may result in serious personal injury or death and property damage.
Do not run this pump dry for extended periods or operate it outside its rated flow and head range. Follow the manufacturer’s wiring, grounding, and float-switch/control-panel instructions for your specific installation.
