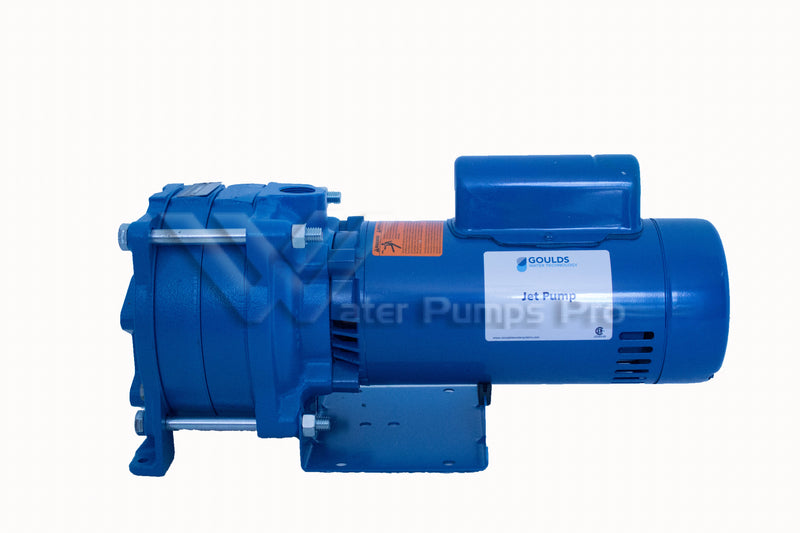

Goulds HSJ15N Multi-Stage Convertible Jet Pump – HSJ Series, 1-1/2 HP, 115/230V, Single Phase, 3 Stages, 22.8 GPM at 5 ft (30 PSI), Cast Iron Body

The Goulds HSJ15N is a 1-1/2 HP, 115/230-volt, single-phase multi-stage convertible jet pump with 3 stages, delivering higher capacity and pressure than a single-stage jet pump of the same horsepower. It can be plumbed for shallow well or deep well service using the appropriate fittings package. Suction is 1-1/4" NPT and discharge is 1" NPT, with a 1" NPT drive connection for deep well pressure control.

• Horsepower: 1-1/2 HP
• Voltage: 115/230V, Single-Phase
• Stages: 3
• Capacity: 22.8 GPM at 30 PSI, 5 ft suction lift
• Pressure Switch: AS4 pressure switch, 30-50 PSI preset
• Pipe Connections: 1-1/4" NPT suction, 1" NPT discharge, 1" NPT drive
• Length (shallow well, add 4in for adapter): 17"
• Shipping Weight: 72 lbs
• Maximum Liquid Temperature: 140°F (60°C)

Construction & Features:

• Design: Multi-stage -- higher capacity and pressure than a single-stage jet pump; convertible for shallow or deep well service using the appropriate fittings package
• Shaft: Stainless steel, hex-design for positive drive with no clearance adjustments needed
• Serviceability: 4-bolt disassembly for easy field service
• Impellers: Corrosion-resistant, glass-filled thermoplastic
• Wear Rings & Cover Plates: Stainless steel
• Finish: Electrocoat baked paint
• Certification: NSF/ANSI 61 & 372 listed (jet pump and shallow well components)

Applications: Homes, farms, cottages, and booster service where higher capacity or pressure is needed.

Installation note: a pressure tank is required on all systems. Deep well installations require a pressure control valve and the appropriate deep well fittings package (twin pipe or packer). Wiring must be performed by a qualified electrician per local codes and the NEC.
