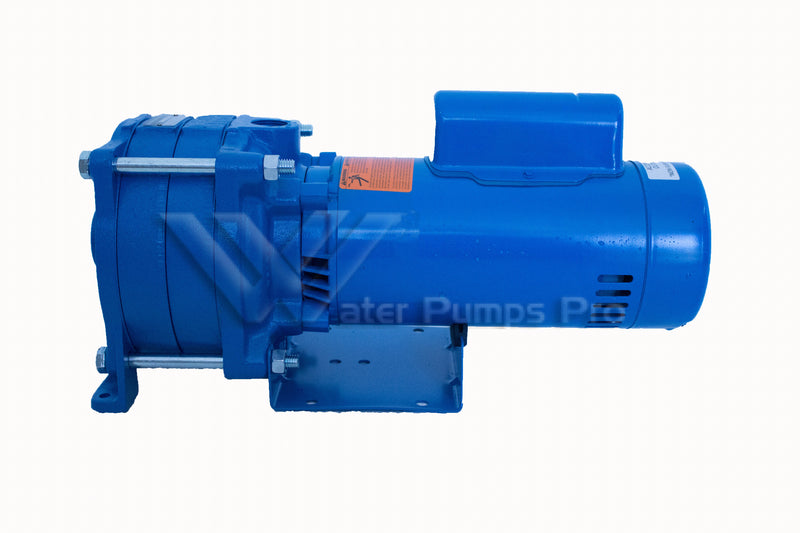

Goulds HSC10B Multi-Stage Centrifugal Pump – 1 HP, 2-Stage, Three Phase, 230/460V, ODP
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
The Goulds HSC10B is a 1 HP, 2-stage multi-stage centrifugal pump in a compact, close-coupled design -- no flexible coupling or bedplate required. It delivers up to 48 GPM and 142 feet of total dynamic head, and is UL778 tested (dimensions and weight for this three-phase variant are sourced from independent retailer listings rather than the current manufacturer brochure -- see product notes).
- Horsepower: 1 HP
- Stages: 2
- Phase: Three Phase
- Voltage: 230/460 V, 60 Hz
- Enclosure: ODP (Open Drip Proof)
- Speed: 3500 RPM
- Maximum Capacity: 48 GPM
- Maximum Head: 142 feet
- Pressures: to 100 PSI (230 feet)
- Maximum Working Pressure: 125 PSI
- Pipe Connections: 1-1/4" suction, 1" discharge
- Maximum Temperature: 180°F (82°C)
- Length: 16" (8" W x 9" H)
- Shipping Weight: 58 lbs
- Certification: UL778 tested
Construction & Features:
- Impellers: 20% glass-filled thermoplastic, precision molded for high efficiencies
- Wear Rings & Cover Plates: Stainless steel, corrosion resistant
- Shaft: Stainless steel hex shaft for positive impeller drive, eliminates clearance adjustments
- Finish: Electro-coated paint process applied inside and out, then baked on
- Sealing: O-rings throughout for positive sealing
- Mounting: Can be mounted in vertical or horizontal position
- Serviceability: Can be taken apart for service by removing four bolts
- Motor: Close-coupled design, ball bearings carry all radial/axial thrust loads, built-in overload with automatic reset, stainless steel shaft
Applications: Water circulation, booster service, liquid transfer, spraying systems, jockey pump service, and general purpose three phase pumping.
