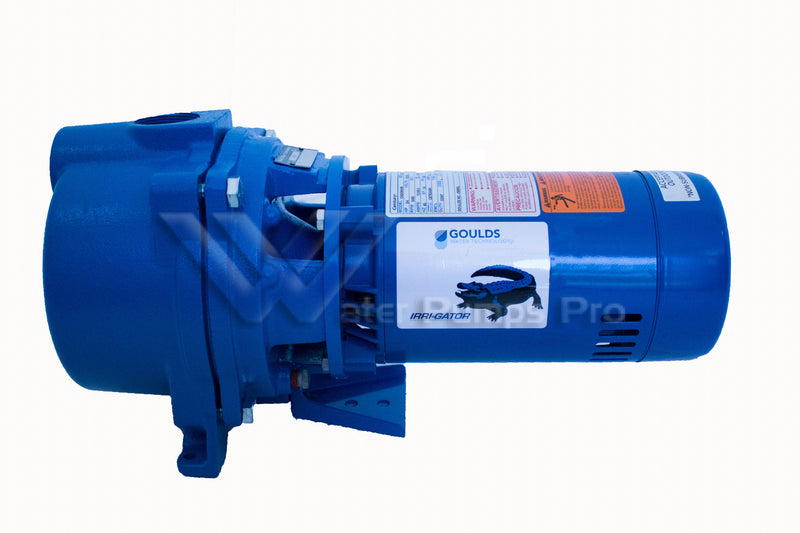

Goulds GT071TE IRRI-GATOR Self-Priming Centrifugal Pump – 44 GPM, 3/4 HP, 115/230V, Single-Phase, TEFC, 1-1/2" NPT

The Goulds GT071TE is a 3/4 HP, 115/230-volt, single-phase self-priming centrifugal irrigation pump with a TEFC (Totally Enclosed Fan Cooled) motor. Once initially primed, it reprimes automatically whenever the water level rises above the end of the suction pipe, making it well suited to seasonal irrigation and sprinkler systems. Suction and discharge are both 1-1/2" NPT.

• Horsepower: 3/4 HP
• Voltage: 115/230V, Single-Phase
• Amps: 13.8/6.9
• Motor Enclosure: TEFC (Totally Enclosed Fan Cooled)
• Capacity: 44 GPM at 20 PSI, 5 ft suction lift
• Maximum Head: Up to 128 ft
• Maximum Working Pressure: 125 PSI
• Maximum Reprime Suction Lift: 25 ft
• Pipe Connections: 1-1/2" NPT suction, 1-1/2" NPT discharge
• Shipping Weight: 66 lbs
• Maximum Liquid Temperature: 140°F (60°C)

Construction & Features:

• Design: Self-priming -- repimes automatically once the water level rises above the end of the suction pipe
• Casing: Cast iron, 4-bolt back pullout design with vacuum gauge and drain openings
• Impeller: Glass-filled, abrasion-resistant engineered composite
• Diffuser: Bolt-down, FDA-compliant glass-filled engineered composite
• Motor: Two-compartment design; NEMA standard, stainless steel shaft
• Mechanical Seal: Carbon / ceramic faces, Buna elastomers, 300 series stainless steel metal parts; a diaphragm prevents dry-run damage
• Finish: Electrocoat paint, inside and out

Applications: Lawn sprinkling and irrigation, air conditioning systems, heat pumps, water transfer, and dewatering.

Installation note: wiring must be performed by a qualified electrician in accordance with local codes and the National Electrical Code, using a dedicated, properly grounded circuit. The pump must be initially primed with water before startup.
