Goulds D12836, SES DUPLEX Control Panels, 1 PH, 28-36 amps
See price in cart
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.

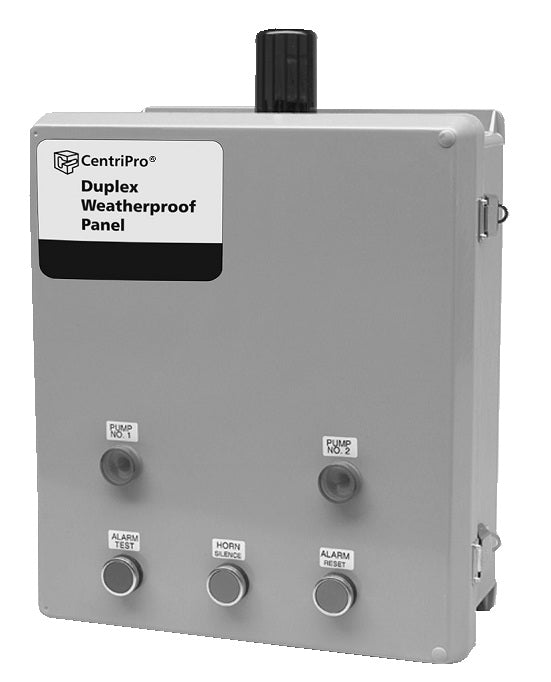

Goulds D12836 is a single-phase SES duplex control panel rated for 28-36 amps, housed in a NEMA 4X fiberglass enclosure with a gasketed hinged door. It provides fully automatic alternation between two pumps along with high-level alarm indication.
- Configuration: Duplex, 1 phase
- Amp Range: 28-36 A
- Enclosure: NEMA 4X fiberglass, gasketed hinged door, stainless steel hardware
- Voltage: Field adjustable 115V or 230V (1 phase); 208/230/460/575V (3 phase)
- Alarm: 30 watt flashing red light, 95 dB horn
- Circuit Breakers: 2 pump breakers
- Overload Protection: 2 adjustable motor overload protectors
- Control Transformer: 115V
- Switches: 2 hand-off-automatic (HOA), on-off control
- Contactors: 2 oversized magnetic
- Alternator: Solid-state, with lag pump start delay
- Float Switches: Ordered separately, 3-4 required
- Listing: UL and CUL listed
Applications: Used for automatic duplex pump alternation and high-level alarm warning in sump, effluent, sewage, and water transfer lift station applications.
