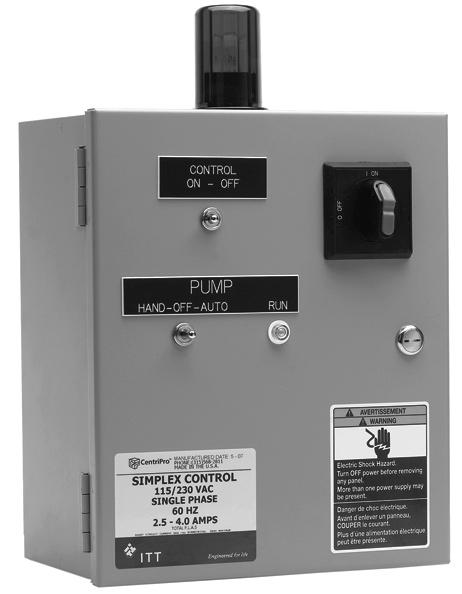

Goulds CSD12232N1 Simplex Panels w/thru door disconnect PH1
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
The item is obsolete. Contact us for replacement
The Goulds CSD12232N1 is a single-phase simplex control panel with a through-the-door main disconnect, built to run a single pump in sump, effluent, sewage, or water-transfer systems. It ships in a NEMA 1 enclosure with the motor overload set for a 22-32 amp range.
- Panel Type: Simplex (1-pump) with through-the-door disconnect
- Phase: 1-Phase (115/230V, 60 Hz)
- Enclosure: NEMA 1 (general-purpose, indoor)
- Amp Range: 22-32 A, field-adjustable overload
- Control Switch: 3-position HOA (Hand-Off-Automatic)
- Indicator: Door-mounted green power-on light
- Alarm: Field-convertible alarm circuit (115VAC external source)
Applications: Used to control and protect simplex or duplex sump, effluent, sewage, and water-transfer pumps, with disconnect capability and high-level alarm warning built into the panel.
