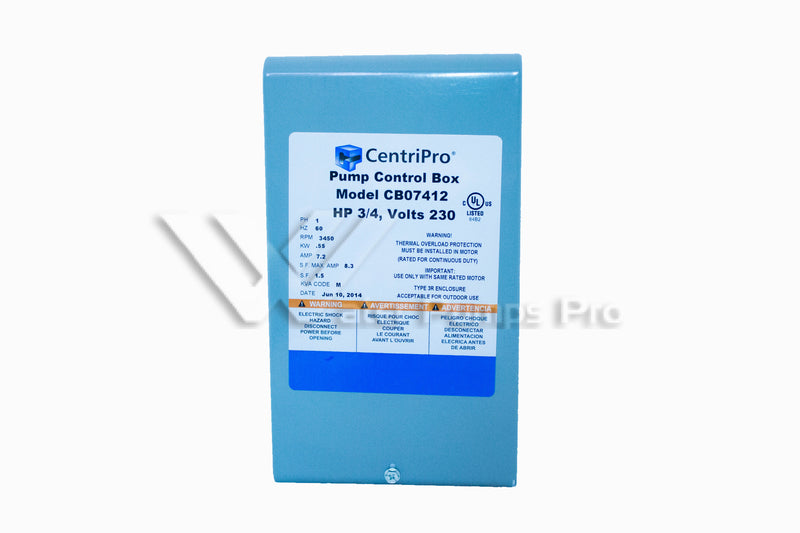

Goulds CentriPro CB07412 – Simplex Quick Disconnect Control Box, 3/4 HP, 230 Volts, 1 Phase, Indoor/Outdoor NEMA 3R
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
The Goulds CentriPro CB07412 is a Quick Disconnect (Q-D) pump control box sized for 3/4 HP, 230-volt, single-phase, 3-wire submersible well pump motors. It houses the starting and running components a 3-wire motor needs to run on a single-phase circuit, in a NEMA 3R enclosure suitable for indoor or outdoor installation.
- Horsepower: 3/4 HP
- Kilowatts: .55 kW
- Voltage: 230V, Single-Phase
- Motor Type: 3-wire submersible
- Standard Circuit Breaker: 20 A
- Standard Fuse: 25 A
- Dual-Element Time-Delay Fuse: 15 A
- Enclosure: NEMA 3R, indoor/outdoor
- Enclosure Dimensions (W x D x H): 4.8" x 2.9" x 8.4"
- Shipping Weight: 4 lbs
- May Replace Franklin Electric #: 280 107 49
Features:
- Voltage Relay: Installer-convenience relay for correct start-circuit switching (115V and 230V models; 208V relay available for low-voltage applications)
- Start Capacitor: With resistor, for motor starting torque
- Enclosure: NEMA 3R, rated for indoor or outdoor mounting
- Cover Design: Quick-disconnect cover will retrofit with other Q-D control boxes
- Wiring: Multiple knockouts, two grounding lugs
Applications: Residential and light-commercial single-phase well pump installations using a 4", 3-wire submersible motor -- private water systems, domestic water supply, and small booster applications.
Installation note: for use with 3-wire, single-phase submersible motors only -- select the control box rated for the motor’s HP and supply voltage. All wiring must be performed by a qualified electrician in accordance with local codes and the National Electrical Code.
