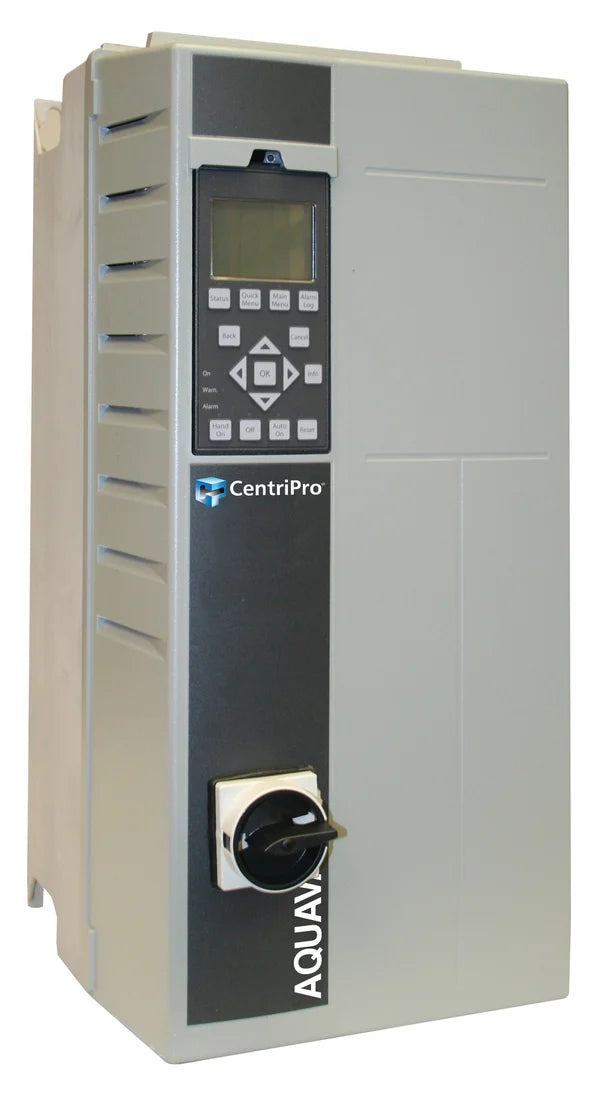

Goulds Aquavar IPC AVA20020A0F0X0X1 2 HP 230V Three Phase Variable Speed Pump Controller - 7.5 Amp, Type 1 (IP21) Enclosure, with Transducer

Goulds Aquavar IPC Variable Speed Drive / Pump Controller - Model AVA20020A0F0X0X1

Key Specifications

• Model Number: AVA20020A0F0X0X1
• Nominal Horsepower: 2 HP
• Input Voltage: 230V
• Input Phase: Three Phase
• Continuous Output Amps (45°C): 7.5
• Frame Size: A2
• Enclosure: Type 1 (IP21)
• Approx. Weight: 12 lbs (max weight per brochure; drive only)

As Configured

• Communication: Standard
• I/O Option: Co-Processor (multi-pump control)
• EMC Filter: H2 EMC/RFI filter (standard)
• Pressure Transducer: Included - 4-20 mA, 300 PSI, with 16 ft cable
• Backup: None
• Disconnect: None
• Motor Mount: None (wall mount)

Features

• Designed for pump control, for submersible and above-ground pumps
• Start-Up Genie for easier set-up and programming
• Multi-pump control for up to four pumps with no PLC; two-wire multi-pump connection
• Multi-master redundancy if a drive fails
• Hand / Off / Auto buttons and a backlit keypad showing actual and setpoint pressure
• Dedicated single-phase input models and true 208V coverage
• Dual DC-link reactors and EMC/RFI filtering to reduce noise
• USB connectivity for remote commissioning and monitoring; alarm log

Pump and Motor Protection

• Pump: no-flow, under-pressure, no water / loss of prime, short-cycle, vibration
• Motor: ground fault, stall, over-temperature, condensation (preheat), overload

Operating Conditions

• Ambient Temperature: 14°F to 113°F (up to 122°F with 10% output derate)
• Humidity: Below 95%, non-condensing
• Altitude: Full rated current to 3,300 ft; derate above

Applications

• Constant-pressure water supply and pressure boosting
• Well, booster and irrigation pumping
• Commercial and light-industrial water systems
