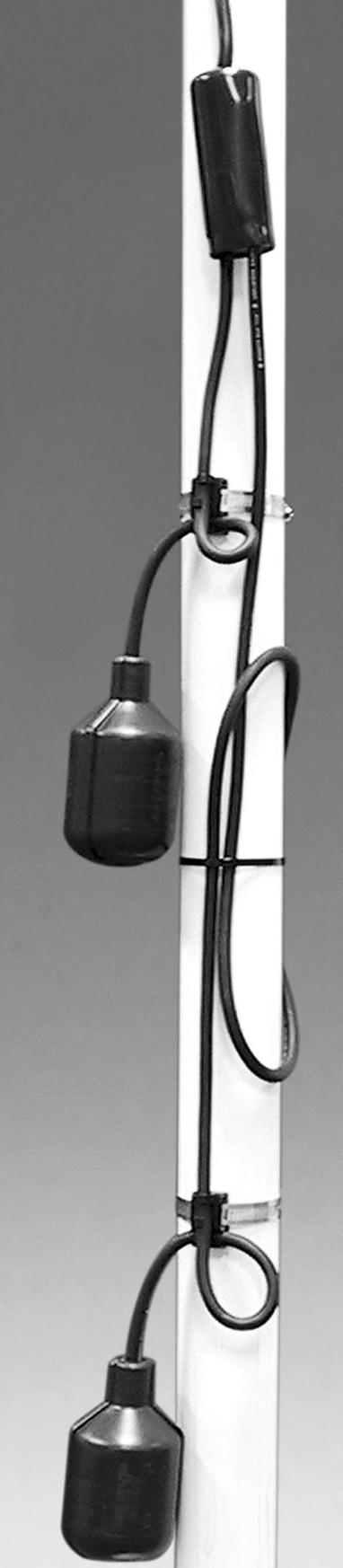

Goulds A2T51 DFM 30' 115V 15A

Goulds A2T51 is a wide-angle SJE Double Float Master pump switch, 15 amps, with a 30-foot cord, 115-volt piggyback plug, normally open (pump-down) operation.

• Part Number: A2T51
• Switch Family: SJE Double Float Master
• Switch Category: Pump Switch (Wide Angle - Direct Pump Control)
• Amp Rating: 15A
• Cord Length: 30'
• Cord Style: 115V Piggyback Plug
• Switch Action: Normally Open (NO) - Pump Down
• Rating: Mechanically activated, wide-angle switch designed to control pumps up to 15 FLA, 90 LRA, 120 VAC or 240 VAC.

Features and Benefits:

• Two-Float Design: Consists of two mechanical floats and a splice tube; the splice tube contains a holding relay that eliminates pump chatter in turbulent conditions.
• Included Hardware: Includes standard mounting clamps and boxed packaging.
• Cable at Float: Flexible 18 gauge, 2-conductor (UL, CSA) SJOW, water-resistant (CPE) cable attached to the float housing.
• Cable Above Splice: Flexible 14 gauge, 3-conductor (UL, CSA) SJTW, water-resistant thermoplastic cable.
• Floats: 2.74 inches diameter x 4.83 inches long, high-impact, corrosion-resistant PP housing for sewage and non-potable water up to 140 degrees F (60 degrees C).
• Stable Operation: Not sensitive to rotation or turbulence.
• Pumping Range: 3 inches to 48 inches.
• Configuration: Available for pump-up or pump-down applications.
• Best For: Confined applications requiring an accurate pumping range.
• Certifications: CSA Certified.

Applications: A wide-angle pump switch that connects directly to a pump for automatic on/off control in sump, effluent, sewage, and water transfer applications.
