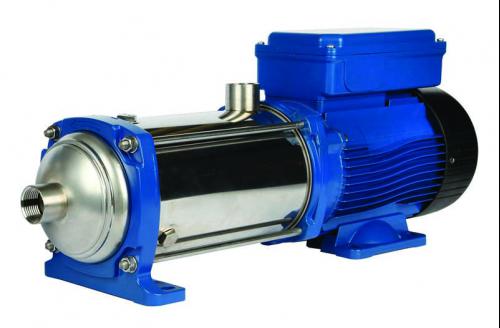

Goulds 5HM07N22T6PBQE – Multi-Stage Booster Pump, e-HM Series, 3 HP, 208-230/460V, Three-Phase, 7-Stage, 1" NPT Discharge, Stainless Steel

The Goulds 5HM07N22T6PBQE is a 3 HP, 7-stage e-HM Series horizontal multistage centrifugal pump from Xylem’s Goulds Water Technology line, engineered in all-316 stainless steel (Sleeve design) for pressure boosting, water supply, and industrial or commercial fluid-handling applications.

• Horsepower: 3 HP
• Stages: 7
• Motor: 208-230/460V, Three-Phase, 3500 RPM, 60 Hz
• Nominal Flow: 33 GPM (Recommended Flow Range: 10-45 GPM)
• Series Maximum Head: 430 ft (highest-stage model in this series)
• Piping Connections: 1-1/4" NPT suction x 1" NPT discharge
• Design: Sleeve (welded sleeve with separate suction housing)
• Maximum Working Pressure: 235 PSI
• Approx. Overall Length / Weight: 21.89" / 49 lbs
• Temperature Range: -20°F to 248°F (-30°C to 120°C)

Construction:

• Pump Body, Impeller & Diffuser: AISI 316L stainless steel
• Shaft: AISI 316 stainless steel
• Adapter: Aluminum
• Wear Ring: Technopolymer (PPS)
• Mechanical Seal: Ceramic/Carbon/EPDM -- Carbon-SilCar-EPDM (BQE, standard)
• Fasteners: AISI 304 stainless steel

Motor Features:

• Motor: Premium-efficiency, UL Recognized (cURus) motor, TEFC (IP55) enclosure, Class F insulation, 3500 RPM
• Single-Phase Units: Built-in auto-reset overload protection
• EISA Compliant: Meets Energy Independence and Security Act of 2007 motor efficiency standards

Applications: Pressure boosting and water supply systems, industrial washing and vehicle-washing equipment, circulation of hot and cold liquids for heating/cooling/conditioning systems, water treatment, handling of moderately aggressive liquids, and food and beverage processing.

Installation note: NPT threaded suction and discharge, close-coupled design. Follow the pump manufacturer's wiring and grounding instructions; do not operate at closed discharge.
