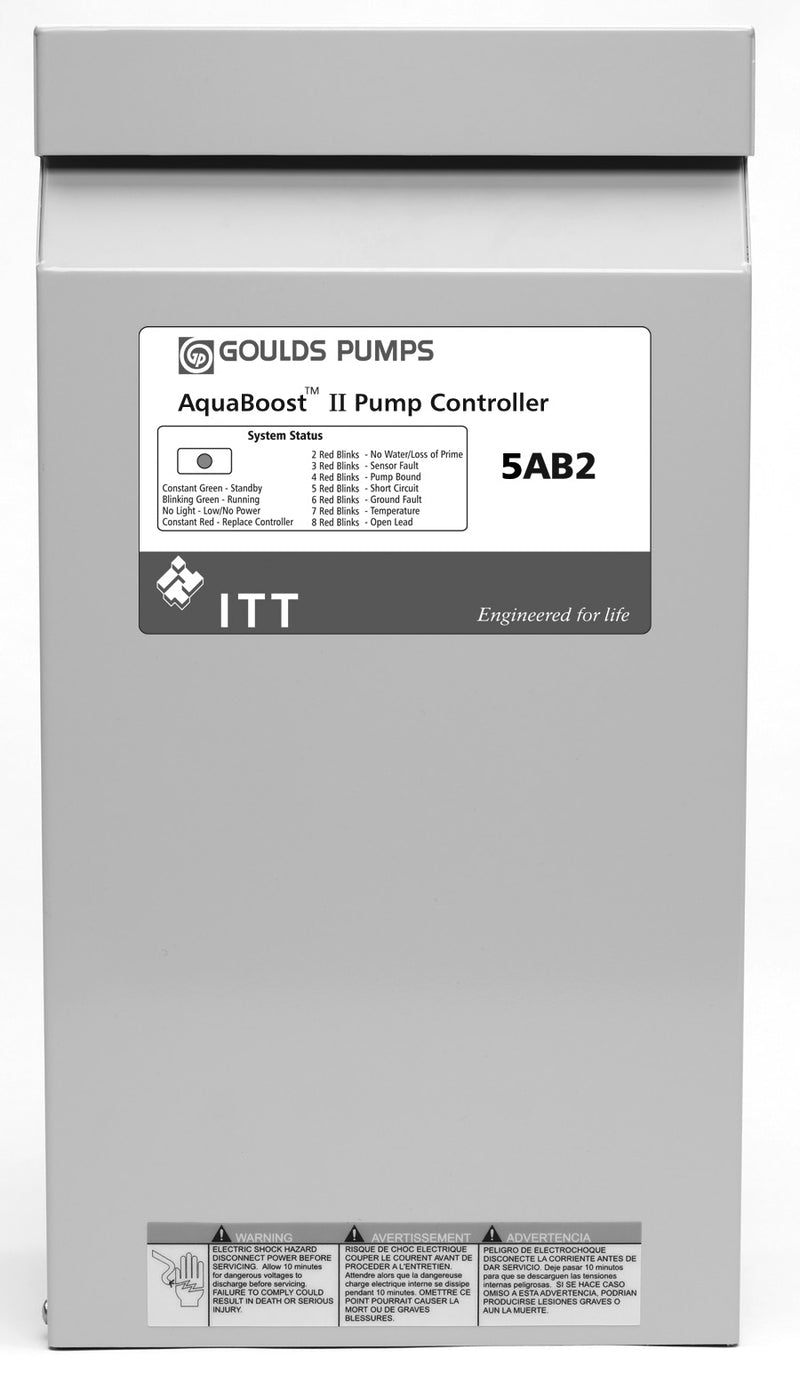

Goulds 5AB2 Aquavar ABII Varible Speed System 5HP 230V

This item is obsolete

Call for replacement

Goulds 5AB2 Aquavar ABII AB2 Varible Speed System 5HP 230V - 16.6 max Amps 1 phase Controller, includes Pressure Transducer. *This product is discontinued and has been replaced by the Goulds AVB10050C0X0X0X1* 5AB2 (5 HP) CONTROLLER FEATURES Input Power: 196-264 Volts, single phase 2-wire, grounded Output Power: Up to 230V three phase (based on input voltage). Motor rated for 208-230 V. Maximum Full Load Current: 16.6 Amps Input Controls: Press and hold pressure increase/decrease buttons. Minimum speed and motor overload switch. Signal Light: Power on, pump running, pump stopped, faults/errors. Electrical Efficiency: Over 95% Protection Against: Short circuit, under voltage, motor overload, motor temperature, dead heading, run out, suction loss, sensor fault, bound pump, over voltage, over/under temperature. Ambient Temperature: 0C F to 122C F Maximum Humidity: 95% at 122C F, non-condensing Air Pollution: Avoid mounting in areas with excessive dust, acids, corrosives and salts. Controller Enclosure: NEMA 3R, IP 22 (Rain-tight) Mounting: Wall mount (mounting screws included). Cooling: Convection with heat sink and fan. Transducer: 0.5 - 4.5 VDC with 5 VDC power supply, 100 psi range, 80" 3-wire cable. PRODUCT OVERVIEW The 5AB2 AquaBoost II pump controller provides an economical answer for municipal and private water systems with low water pressure. Both domestic and light commercial above ground boosters can benefit. As water use increases, the AquaBoost II changes pump speed to maintain pressure. Large supply tanks are eliminated and up to 50% of the energy required by a full speed pump is saved. Think of it as "Cruise Control" for your pump. The 5AB2 is available with a power capacity to handle homes with up to four baths, irrigation, filtration and fire suppression systems. The AquaBoost II is available as a separate variable speed controller or packaged with a 5 HP pump. * Pressure sensor (transducer) and cable is included. Flow-Pressure Typical home water pressure drops when demand is high. Pressure Flow- The AquaBoost makes up the pressure difference at peak demand for constant home water pressure. COMPONENTS / PART NUMBERS 5AB2 - 16.6 Amp AquaBoost II controller, wall mount set, transducer, transducer cable, outdoor rated enclosure. (Pump and tank not included.) PRESSURE RANGE Nominal Range - Field adjustable from 20 - 100 psi, total system pressure.
