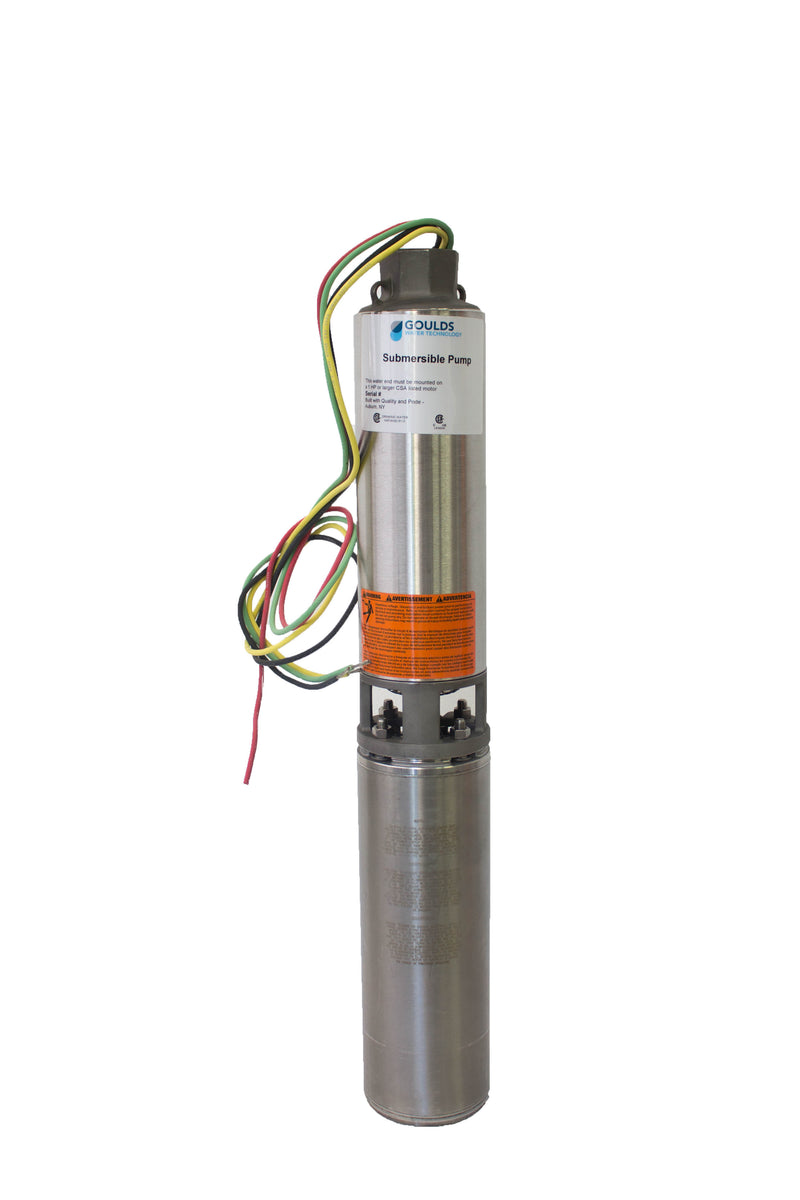

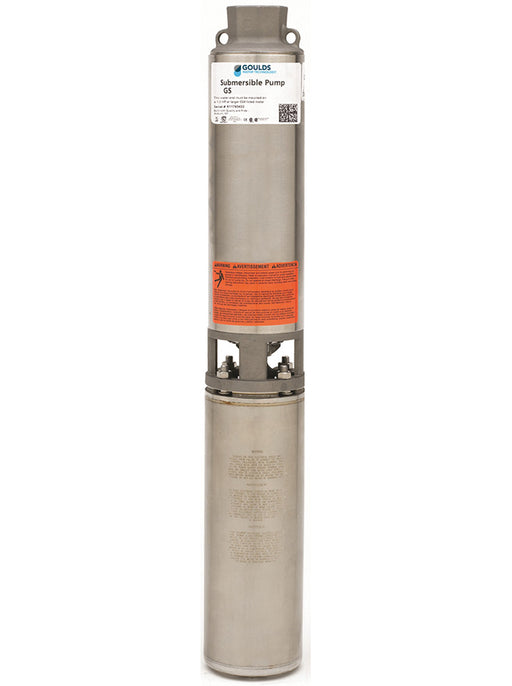

Goulds 55GS20412CL 2HP Submersible Water Well Pump 3 Wire New Model:[65GS20412CL]

This item is obsolete.

Goulds 55GS20412CL 4" Submersible Water Well Pump and motor without control box. 55 Gallons per Minute, 2 Horsepower, 3 Wire, 230 volts, 7 Stages.

• Part Number: 55GS20412CL
• Flow Rate: 55 GPM
• Horsepower: 2 HP
• Stages: 7
• Voltage: 230V
• Wiring: 3-Wire
• Motor: Included
• Control Box: Required, not included (sold separately)

Pump Features:

• Powered for Continuous Operation: All ratings are within the working limits of the motor as recommended by the motor manufacturer. Pump can be operated continuously without damage to the motor.
• Field Serviceable: Units have left-hand threads and are field serviceable with common tools and readily available repair parts.
• Sand Handling Design: Face-clearance, floating impeller stack has proven itself for over 50 years as a superior sand-handling, durable pump design.
• FDA Compliant Non-Metallic Parts: Impellers, diffusers, and bearing spiders are constructed of glass-filled engineered composites. They are corrosion resistant and non-toxic.
• Discharge Head/Check Valve: Cast 303 stainless steel for strength and durability. Two cast-in safety line loops for installer convenience. The built-in check valve is constructed of stainless steel and FDA-compliant BUNA rubber for abrasion resistance and quiet operation.
• Motor Adapter: Cast 303 stainless steel for rigid, accurate alignment of pump and motor. Easy access to motor mounting nuts using a standard open-end wrench.
• Stainless Steel Casing: Polished stainless steel is strong and corrosion resistant.
• Hex Shaft Design: Six-sided shafts for positive impeller drive.
• Engineered Polymer Bearings: The proprietary, engineered polymer bearing material is strong and resistant to abrasion and wear. The enclosed upper bearing is mounted in a durable Noryl bearing spider for excellent abrasion resistance.

Motor Features:

• Motor Construction: Corrosion-resistant stainless steel construction.
• Motor Surge Protection: Built-in surge arrestor is provided on single-phase motors.
• Motor Shaft: Stainless steel splined shaft.
• Motor Windings: Hermetically sealed windings.
• Motor Lead Assembly: Replaceable.
• Motor Mounting: NEMA mounting dimensions.
• Motor Starting Requirements: A control box is required for 3-wire single-phase units. Three-phase motors require a starter with Class 10 overload protection.

Control Box Features:

• Control Box Relays: Voltage relays for installer convenience; 115 and 230 volt models, with a 208 volt relay available for low-voltage applications.
• Control Box Capacitors: Start capacitors with resistors.
• Control Box Enclosure: NEMA 3R enclosure for indoor or outdoor mounting.
• Control Box Design: Quick-disconnect cover design will retrofit with other Q-D control boxes. Multiple knockouts and two grounding lugs.
