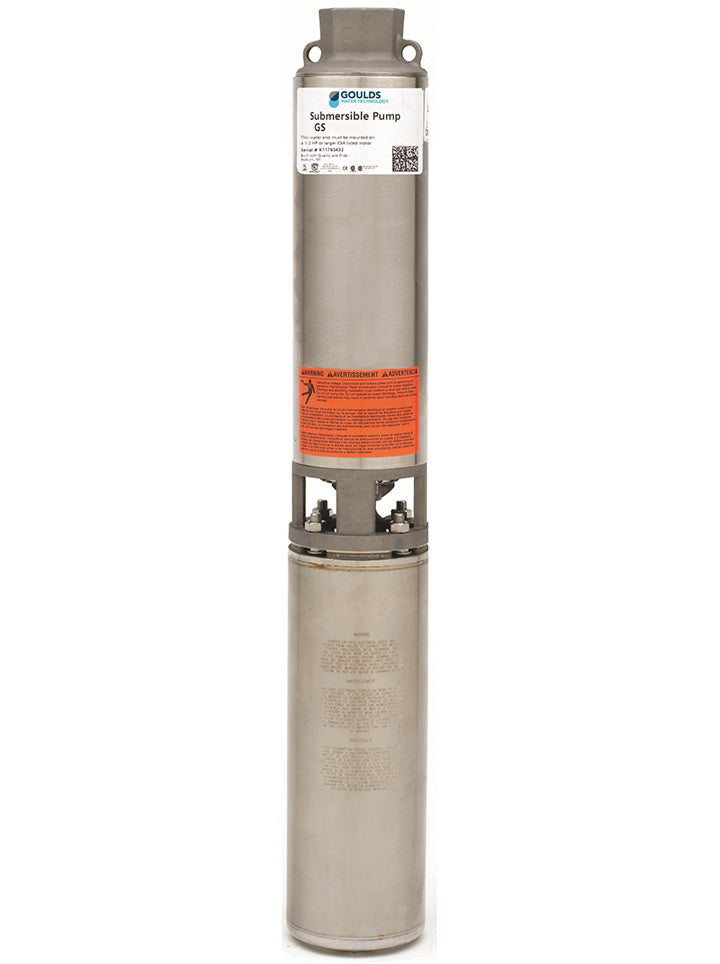

Goulds 55GS15412C 55GPM 1.5HP Submersible Water Well Pump 230V New Model:[65GS15412C]

Goulds 55GS15412C 4" Submersible Water Well Pump, Motor & Control Box. 55 Gallons per Minute, 1.5 Horsepower, 3 Wire, 230 volts, 5 Stages.

FEATURES
Up to 13% Efficiency Improvement
Fewer models, same hydraulic coverage
Powered for Continuous Operation: All ratings are within the working limits of the motor as recommended by the motor manufacturer. Pump can be operated continuously without damage to the motor.
Field Serviceable: Units have left hand threads and are field serviceable with common tools and readily available repair parts.
Sand Handling Design: Our face clearance, floating impeller stack has proven itself for over 50 years as a superior sand handling, durable pump design.
FDA Compliant Non-Metallic Parts: Impellers, diffusers and bearing spiders are constructed of glass filled engineered composites. They are corrosion resistant and non-toxic.
Discharge Head/Check Valve: Cast 303 stainless steel for strength and durability. Two cast-in safety line loops for installer convenience. The built-in check valve is constructed of stainless steel and FDA compliant BUNA rubber for abrasion resistance and quiet operation.
Motor Adapter: Cast 303 stainless steel for rigid, accurate alignment of pump and motor.
Easy access to motor mounting nuts using standard open end wrench.
Stainless Steel Casing: Polished stainless steel is strong and corrosion resistant.
Hex Shaft Design: Six sided shafts for positive impeller drive.
Engineered Polymer Bearings: The proprietary, engineered polymer bearing material is strong and resistant to abrasion and wear. The enclosed upper bearing is mounted in a durable Noryl bearing spider for excellent abrasion resistance.

NEMA MOTOR
Corrosion resistant stainless steel construction
Built-in surge arrestor is provided on single phase motor
Stainless steel splined shaft
Hermetically sealed windings
Replaceable motor lead assembly
NEMA mounting dimensions
Control box is required with 3-wire single-phase units
Three-phase motors require a starter with Class 10 overload protection

Control Box:
Voltage Relays for installer convenience
115 and 230 volt models
208 volt relay available for low voltage applications
Start Capacitors with resistors
NEMA 3R enclosure for indoor or outdoor mounting
Quick disconnect cover design will retrofit with other Q-D control boxes
Multiple knockouts
Two grounding lugs
