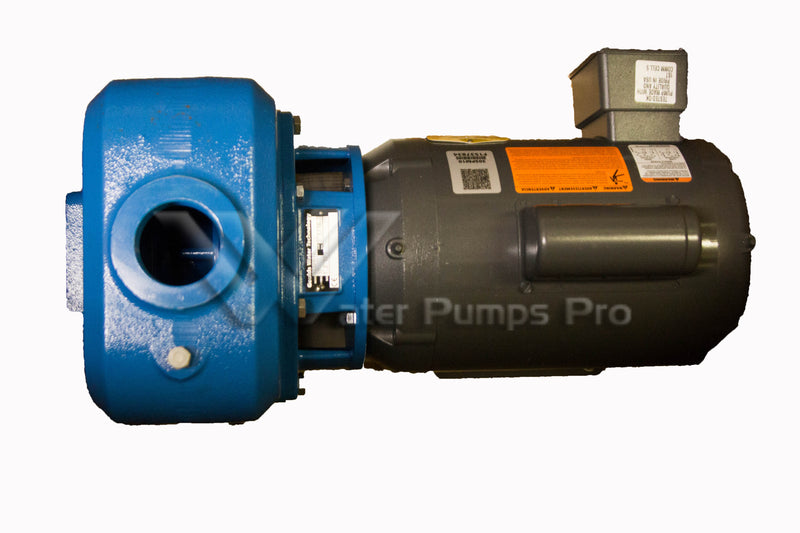

Goulds 50SPM20 Self-Priming Medium Head Pump – 5 HP, Single Phase, TEFC, 208-230V
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
The Goulds 50SPM20 is a 5 HP self-priming medium head pump built for lawn irrigation, dewatering, liquid transfer, plot irrigation, and livestock watering. Its self-priming design uses a replaceable check valve to retain enough liquid in the casing for fast, reliable priming and automatic repriming (to 25 feet), and it delivers up to 218 GPM with up to 115.5 feet of total dynamic head.
- Horsepower: 5 HP
- Model Type: Medium Head Impeller/Diffuser
- Phase: Single Phase
- Voltage: 208-230 V, 60 Hz
- Enclosure: TEFC (Totally Enclosed Fan Cooled)
- Maximum Flow: 218 GPM
- Maximum Head: 115.5 feet
- Reprime Capability: to 25 feet
- Suction Connection: 3" NPT
- Discharge Connection: 2-1/2" NPT
- Maximum Temperature: 160°F
- Shipping Weight: 155 lbs
- Note: Not rated for 50 Hz service
Construction & Features:
- Impeller & Wear Ring: Silicon bronze construction, replaceable wear rings, enclosed and balanced impeller keyed to the motor shaft
- Casing & Diffuser: Cast iron, back pull-out design with tapped fill/drain connections and top-accessible pump feet
- Shaft Sleeve: 300 series stainless steel, replaceable
- Mechanical Seal: Carbon/ceramic faces, BUNA elastomers, 300 series stainless steel metal parts
- Motor: NEMA standard, JM shaft
Applications: Lawn irrigation, dewatering, liquid transfer, plot irrigation, and livestock watering.
This pump uses the standard Buna-elastomer mechanical seal configuration, which is not certified to NSF/ANSI 61.
