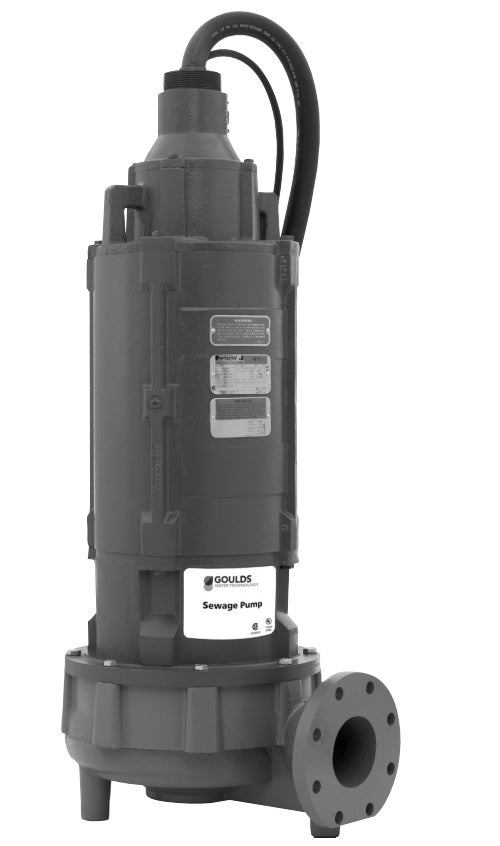

Goulds 4XD12Q2BC Submersible Sewage Pump Non-Clog 30HP 200V 3PH
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
The Goulds 4XD12Q2BC is a 30 HP submersible non-clog sewage pump built for explosion-proof duty, wired for 200V, 3-phase power at 1750 RPM. It uses a 10.75" cast iron impeller, handles solids up to 3", and discharges through a 4" 125# ANSI flanged connection. The pump features tandem mechanical seals, dual moisture-sensing probes, and a motor certified explosion-proof for Class I, Division I, Groups C and D locations.
- Horsepower: 30 HP
- Voltage / Phase: 200V / 3-Phase, 60 Hz
- Speed: 1750 RPM
- Impeller Diameter: 10.75"
- Max Solids: 3"
- Discharge Size: 4" 125# ANSI flanged
- Capacity: Up to 1160 GPM
- Total Head: Up to 140 ft
- Seal Type: Tandem mechanical seals, carbon/ceramic faces standard (optional silicon carbide lower seal)
- Motor Rating: Explosion-proof, Class I, Division I, Groups C & D; Class F insulation, 1.15 SF
- Construction: Cast iron casing and impeller (ASTM A48 Class 30 gray iron)
- Certifications: CSA certified, UL Listed
Applications: Suited for municipal and subdivision lift stations, wastewater treatment plants, industrial dewatering, and flood or pollution control systems.
