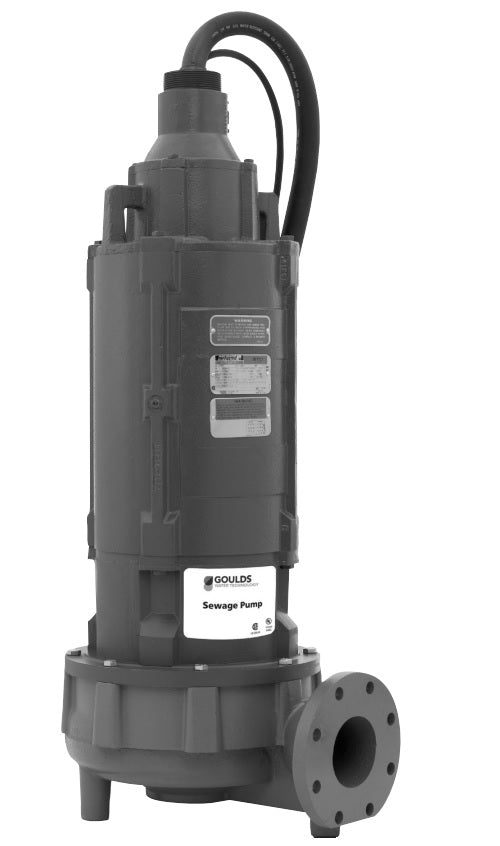

Goulds 4XD12M4GC Submersible Sewage Pump Non-Clog 15HP 460V 3PH
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
The item is obsolete. Contact us for replacement
The Goulds 4XD12 is an explosion-proof, non-clog submersible sewage pump built for continuous, fully submerged duty in hazardous locations. This 15 HP, 460V three-phase, 1750 RPM version turns a 9.00" cast iron impeller and passes up to 3" solids through a 4" ANSI flanged discharge, with family capacity up to 1160 GPM and total head up to 140 ft.
- Horsepower: 15 HP
- Voltage / Phase: 460V, 3-Phase
- RPM: 1750
- Impeller Diameter: 9.00"
- Max Solids: 3"
- Discharge Size: 4" ANSI 125# flanged
- Capacity: Up to 1160 GPM
- Total Head: Up to 140 ft
- Construction: Cast iron volute casing and impeller (ASTM A48 Class 30); 416 stainless steel motor shaft; 300 series stainless steel fasteners
- Seal Type: Tandem mechanical seals separated by an oil-filled chamber with dual moisture-sensing probes; carbon rotary / ceramic stationary faces standard
- Certifications: Explosion-proof for Class I, Division 1, Groups C & D hazardous locations; CSA certified; UL listed motor
Applications: Sewage systems, flood and pollution control, industrial dewatering, wastewater treatment plants, and municipal or subdivision lift stations.
