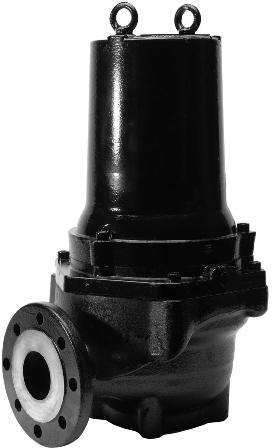

Goulds 4GV4023GD 4" GV Plus Sewage, 4HP, 230V, 3PH
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
The item is obsolete. Contact us for replacement
The Goulds 4GV4023GD is a 4" submersible sewage pump from the GV Plus vortex line, rated 4 HP at 230V, 3-Phase. It uses a cast iron multi-vane vortex impeller to pass stringy solids and dual mechanical seals with a seal sensor probe for leak detection, and is built for continuous duty fully submerged.
- Horsepower: 4 HP
- Voltage / Phase: 230V / 3-Phase
- Capacity: Up to 1,200 GPM
- Total Head: Up to 80 ft TDH
- Discharge Size: 4" ANSI flange
- Max Solids: 3" spherical solids
- Construction: Cast iron casing and vortex impeller, 400 series stainless steel shaft, 300 series stainless steel fasteners
- Seal Type: Dual mechanical seals with seal sensor probe; tungsten carbide vs. ceramic outer faces, carbon vs. ceramic inner faces, nitrile elastomers
- Motor: Air-filled motor, Class H insulation, rated for continuous duty when fully submerged (max ambient 104 F / 40 C), 60 Hz, single row ball bearings
- Power Cord: 30 ft standard, severe duty oil- and water-resistant cord
- Certifications: Explosion-proof construction available as an option, FM approved
Applications: Used for sewage, effluent, and dewatering applications in municipal, commercial, and light industrial settings where solids-laden wastewater must be pumped reliably.
