Goulds 4GV1022AD 4" GV Plus Sewage, 10HP, 200V, 3 PH
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
The item is obsolete. Contact us for replacement

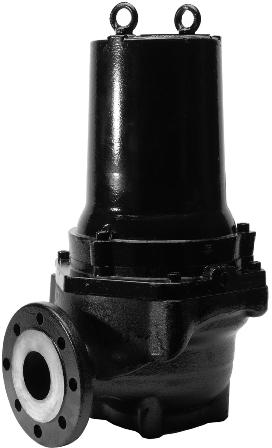

The Goulds 4GV1022AD is a 4" submersible GV Plus vortex sewage/wastewater pump rated 10 HP at 200V, 3-Phase. It uses a cast iron multi-vane vortex impeller to pass stringy solids and large debris without clogging, and runs on dual mechanical seals with an integrated seal sensor probe for leak detection.
- Horsepower: 10 HP
- Voltage / Phase: 200V, 3-Phase
- Capacity: Up to 1200 GPM (family range)
- Total Head: Up to 80’ TDH (family range)
- Discharge Size: 4" ANSI flange
- Max Solids: 3" soft solids
- Impeller: Cast iron multi-vane vortex style with rip vane for stringy solids
- Construction: Cast iron casing and impeller; 400 series stainless steel shaft; 300 series stainless steel fasteners
- Seal Type: Dual mechanical seals (tungsten carbide/ceramic faces standard, tungsten carbide/tungsten carbide on higher-HP units) with high-temperature seal sensor probe (requires MiniCAS control panel device)
- Motor: Air-filled motor, Class H insulation, single row ball bearings, rated for continuous duty when fully submerged, includes high-temperature winding sensor
- Certifications: Explosion-proof configuration available (FM approved)
- Cord: 30 ft severe-duty, oil- and water-resistant power cord (standard)
Applications: Used for sewage systems, dewatering and effluent handling, water transfer, and light industrial or commercial applications where solids-laden wastewater must be pumped quickly and efficiently.
