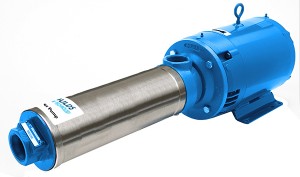

Goulds 45HB21135 High Pressure Pump 10HP 3PH 208-230/460V TEFC New Model:[45HB21135PE]

This item is obsolete

Goulds Multi-Stage Centrifugal Booster Pump Model: 45HB21135, 10HP, 8 Stages, 3 Phase, TEFC Motor, 215 Frame, 208-230/460V Features Multi-Stage Design: This configuration provides a steady, quiet and vibration free operation for years of trouble-free service. Impellers and Diffusers: Glass filled thermoplastic. Precision molded for high efficiencies. Bowls: Constructed with 300 series stainless steel. Rabbet lock for positive alignment no gaskets required. Mechanical Seal: Carbon/ceramic faces. BUNA elastomers 300 series stainless steel metal parts. Motor: Close-coupled design. Ball bearings carry all radial/axial thrust loads. Designed for continuous operation. All ratings are within working limits of the motor. WARNING: This is a booster pump. It has no lift capability. DO NOT run dry. DO NOT deadhead. APPLICATIONS: Wide variety of industrial, commercial and agricultural uses, especially: High rise buildings, Multiple dwelling buildings, Reverse osmosis systems, High pressure cleaning, Spraying systems, Booster service. SPECIFICATIONS: Capacities: to 100 GPM Heads: to 760 feet. Pipe connections: Suction 2"" NPT, Discharge 2"" NPT. Temperature: 160F (71C) maximum. Inlet pressure: 100 PSI maximum. Rotation: right hand, i.e., clockwise when viewed from motor end. MOTOR: 60 Hz, 3500 RPM. Threaded shaft extension. Three phase: 3-10 HP 208-230/460 V. At Water Pumps Pro we strongly recommend that all installation, repairs, and part replacements be undertaken by a certified and licensed technician, contractor, local pump and motor repair shop and not by the owner. Failure to repair pumps, motor and electrical equipment correctly could result in electrical shock, fire hazard, unsatisfactory performance, equipment failure, and even death. Neither the equipment manufacturer nor Water Pumps Pro makes any representation or warranty of any kind to the Buyer that he or she is qualified to neither install nor make any repairs to the products.
