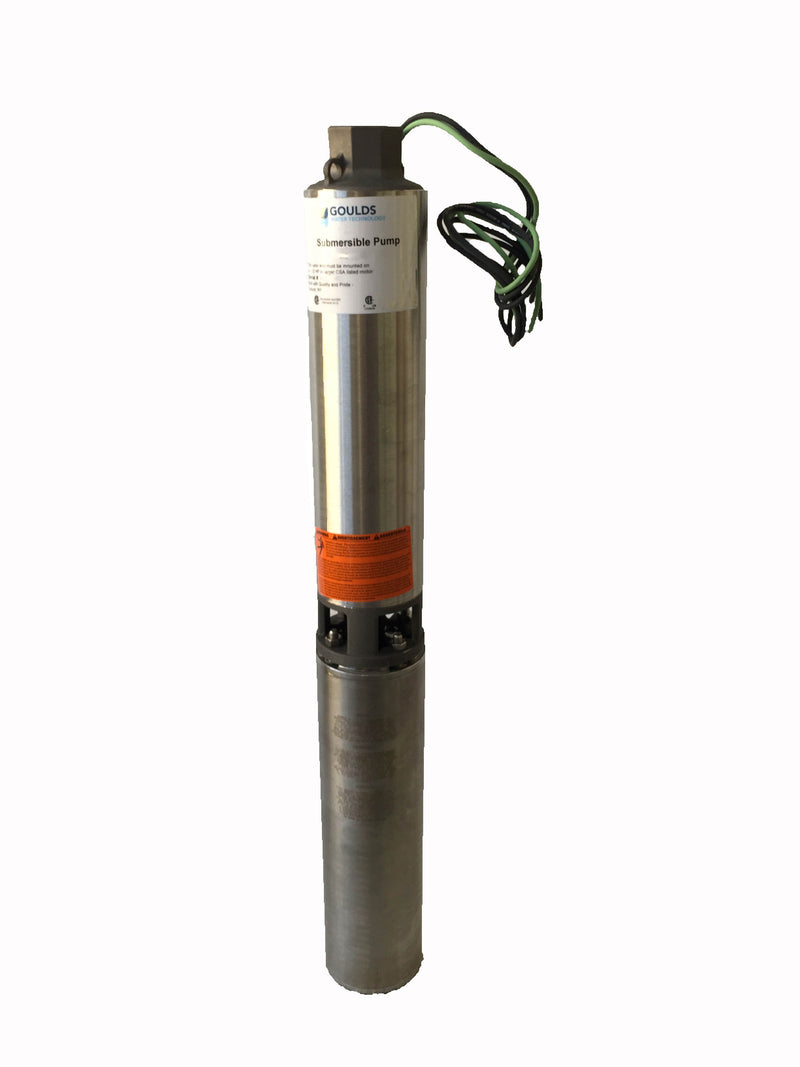

Goulds 40GS15422C 1.5HP Submersible Water Well Pump 2 Wire New Model:[45GS15422C]

Goulds 40GS15422C 4" Submersible Water Well Pump and Motor, 40 Gallons per Minute, 1.5 Horsepower, 2 Wire, 230 volts, 5 Stages

FEATURES
Powered for Continuous Operation: All ratings are within the working limits of the motor as recommended by the motor manufacturer. Pump can be operated continuously without damage to the motor.
Field Serviceable: Units have left hand threads and are field serviceable with common tools and readily available repair parts.
Sand Handling Design: Our face clearance, floating impeller stack has proven itself for over 50 years as a superior sand handling, durable pump design.
FDA Compliant Non-Metallic Parts: Impellers, diffusers and bearing spiders are constructed of glass filled engineered composites. They are corrosion resistant and non-toxic.
Discharge Head/Check Valve: Cast 303 stainless steel for strength and durability. Two cast-in safety line loops for installer convenience. The built-in check valve is constructed of stainless steel and FDA compliant BUNA rubber for abrasion resistance and quiet operation.
Motor Adapter: Cast 303 stainless steel for rigid, accurate alignment of pump and motor.
Easy access to motor mounting nuts using standard open end wrench.
Stainless Steel Casing: Polished stainless steel is strong and corrosion resistant.
Hex Shaft Design: Six sided shafts for positive impeller drive.
Engineered Polymer Bearings: The proprietary, engineered polymer bearing material is
strong and resistant to abrasion and wear. The enclosed upper bearing is mounted in a
durable Noryl bearing spider for excellent abrasion resistance.

NEMA MOTOR
Corrosion resistant stainless steel construction
Built-in surge arrestor is provided on single phase motor
Stainless steel splined shaft
Hermetically sealed windings
Replaceable motor lead assembly
NEMA mounting dimensions
Control box is required with 3-wire single-phase units
Three-phase motors require a starter with Class 10 overload protection
