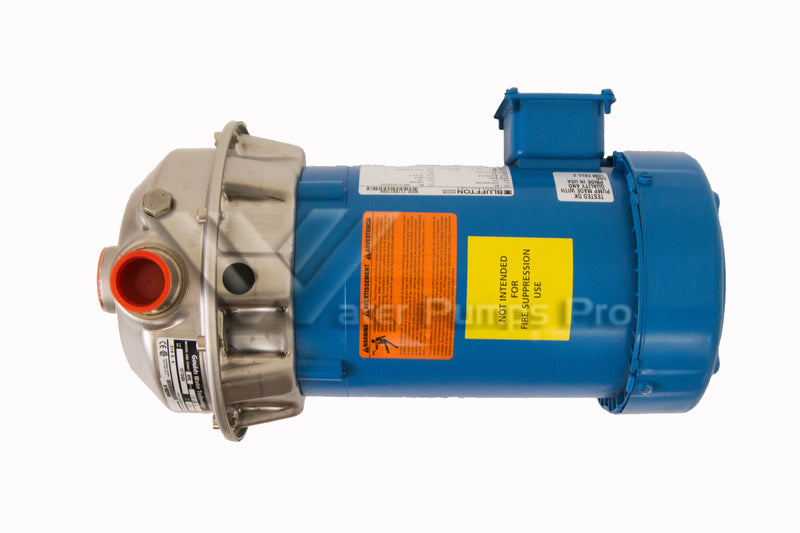

Goulds 3ST1E1E4 Close Coupled Centrifugal Pump 1HP ODP
See price in cart
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
This item is obsolete.
Goulds 3ST1E1E4 is a 1 HP, Single-phase, Open Drip-Proof (ODP) close-coupled centrifugal pump with an all-stainless-steel wetted end (Goulds NPE Series).
- Part Number: 3ST1E1E4
- Horsepower: 1 HP
- Phase: Single-Phase
- Voltage: 115-230V
- Motor Enclosure: Open Drip-Proof (ODP)
- Wetted End Material: AISI 316L Stainless Steel
- Series: Goulds NPE
Features and Benefits:
- Superior Materials of Construction: Complete AISI 316L stainless steel liquid handling components and mounting bracket for corrosion resistance, quality appearance, and improved strength and ductility.
- High-Efficiency Impeller: Enclosed impeller with a unique floating seal ring design maintains maximum efficiency over the life of the pump without adjustment.
- Casing and Adapter: Stainless steel construction with NPT threaded, centerline connections; easily accessible vent, prime, and drain connections with stainless steel plugs. Optional seal face vent/flush available.
- Mechanical Seal: Standard John Crane Type 21 with carbon versus silicon-carbide faces, Viton elastomers, and 316 stainless steel metal parts. Optional high-temperature and chemical-duty seals available.
- Motors: Open drip-proof (ODP). Rugged ball bearing design for continuous duty under all operating conditions.
Applications: General purpose liquid transfer, water supply, boiler feed, air conditioning and cooling tower service, and industrial process pumping where an all-stainless-steel wetted end is required for corrosion resistance.
