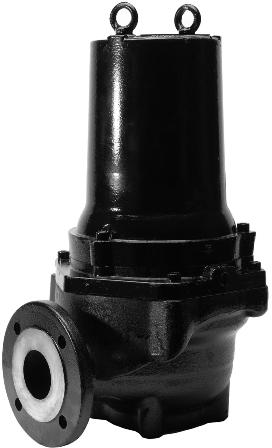

Goulds 3GV6518DD 3" GV Plus Sewage, 6.5 HP, 208V, 1PH
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
The item is obsolete. Contact us for replacement
The Goulds 3GV6518DD is a 3" submersible GV Plus vortex sewage/wastewater pump rated 6.5 HP at 208V, 1-Phase. It uses a cast iron multi-vane vortex impeller to pass stringy solids and large debris without clogging, and runs on dual mechanical seals with an integrated seal sensor probe for leak detection.
- Horsepower: 6.5 HP
- Voltage / Phase: 208V, 1-Phase
- Capacity: Up to 575 GPM (family range)
- Total Head: Up to 152’ TDH (family range)
- Discharge Size: 3" ANSI flange
- Max Solids: 2-1/2" soft solids
- Impeller: Cast iron multi-vane vortex style with rip vane for stringy solids
- Construction: Cast iron casing and impeller; 400 series stainless steel shaft; 300 series stainless steel fasteners
- Seal Type: Dual mechanical seals (tungsten carbide/ceramic faces standard, tungsten carbide/tungsten carbide on higher-HP units) with high-temperature seal sensor probe (requires MiniCAS control panel device)
- Motor: Air-filled motor, Class H insulation, single row ball bearings, rated for continuous duty when fully submerged, includes high-temperature winding sensor
- Certifications: Explosion-proof configuration available (FM approved)
- Cord: 30 ft severe-duty, oil- and water-resistant power cord (standard)
Applications: Used for sewage systems, dewatering and effluent handling, water transfer, and light industrial or commercial applications where solids-laden wastewater must be pumped quickly and efficiently.
