Goulds 3GV1114AD 3" GV Plus Sewage, 11 HP, 460V, 3 PH
See price in cart
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
The item is obsolete. Contact us for replacement

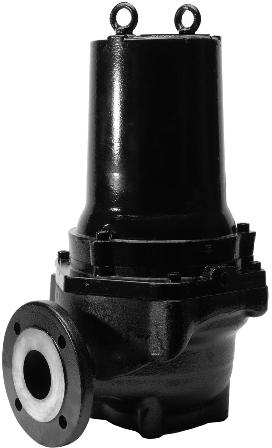

Goulds 3GV1114AD is a 3" submersible GV Plus vortex sewage pump rated 11 HP, 460V, 3-phase, 60 Hz, built with dual mechanical seals and a seal sensor probe for solids-handling wastewater applications.
- Horsepower: 11 HP
- Voltage / Phase: 460V, 3-phase
- Frequency: 60 Hz
- Capacity: Up to 575 GPM
- Total Head: Up to 152 ft TDH
- Discharge Size: 3" ANSI flange
- Max Solids: 2-1/2"
- Impeller: Cast iron, multi-vane vortex style with rip vane for stringy solids
- Casing: Cast iron, large unobstructed passageway for large solids
- Shaft: 400 series stainless steel, taper lock
- Seal Type: Dual mechanical seals, tungsten carbide vs. tungsten carbide (outer) and tungsten carbide vs. carbon (inner), nitrile elastomers, with high-temperature seal sensor probe
- Motor: Air-filled, Class H insulation, rated for continuous duty fully submerged
- Cord: Severe duty, oil and water resistant, 30 ft standard
- Mounting: Optional stationary stand for non-slide-rail installation (P/N 7482200)
- Certifications: FM approved; explosion-proof construction available as an option
Applications: Sewage systems, effluent dewatering, water transfer, and light industrial or commercial installations requiring submersible solids-handling.
