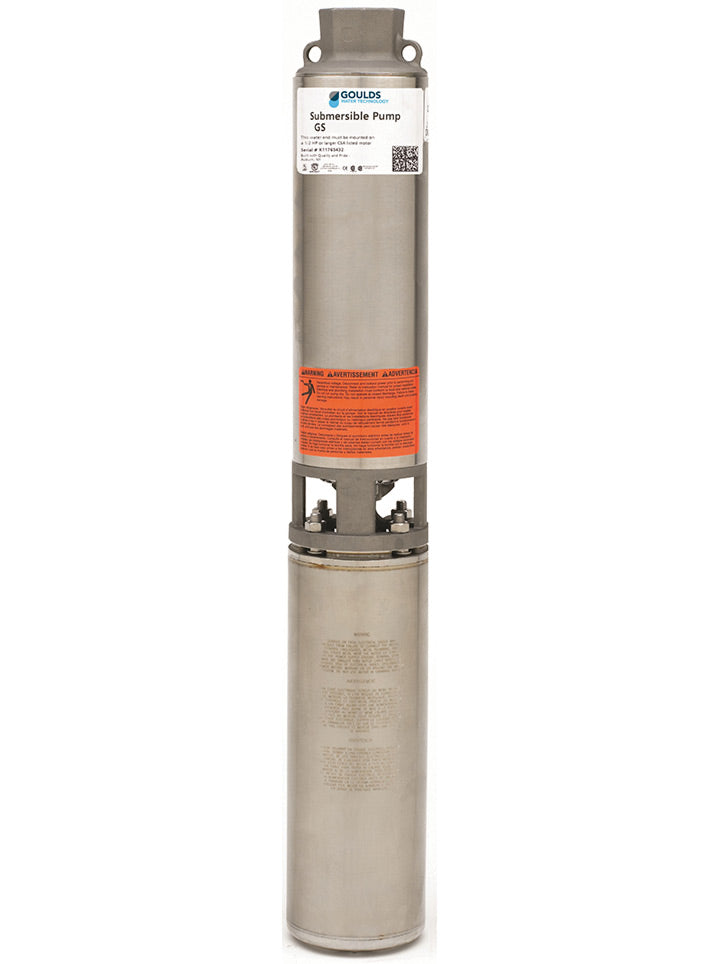

Goulds 33GS75432C 33GPM 7.5HP Submersible Water Well Pump 230V New Model:[35GS75432C]

This item is obsolete.

Goulds 33GS75432C 4" Submersible Water Well Pump. 33 Gallons per Minute, 7.5 Horsepower, 3 Phase, 230 volts, 34 Stages.

• Part Number: 33GS75432C
• Flow Rate: 33 GPM
• Horsepower: 7.5 HP
• Stages: 34
• Voltage: 230V
• Phase: 3 Phase

Pump Features:

• Efficiency: Up to 13% efficiency improvement over standard models, with fewer models covering the same hydraulic range.
• Powered for Continuous Operation: All ratings are within the working limits of the motor as recommended by the motor manufacturer. Pump can be operated continuously without damage to the motor.
• Field Serviceable: Units have left-hand threads and are field serviceable with common tools and readily available repair parts.
• Sand Handling Design: Face-clearance, floating impeller stack has proven itself for over 50 years as a superior sand-handling, durable pump design.
• FDA Compliant Non-Metallic Parts: Impellers, diffusers, and bearing spiders are constructed of glass-filled engineered composites. They are corrosion resistant and non-toxic.
• Discharge Head/Check Valve: Cast 303 stainless steel for strength and durability. Two cast-in safety line loops for installer convenience. The built-in check valve is constructed of stainless steel and FDA-compliant BUNA rubber for abrasion resistance and quiet operation.
• Motor Adapter: Cast 303 stainless steel for rigid, accurate alignment of pump and motor. Easy access to motor mounting nuts using a standard open-end wrench.
• Stainless Steel Casing: Polished stainless steel is strong and corrosion resistant.
• Hex Shaft Design: Six-sided shafts for positive impeller drive.
• Engineered Polymer Bearings: The proprietary, engineered polymer bearing material is strong and resistant to abrasion and wear. The enclosed upper bearing is mounted in a durable Noryl bearing spider for excellent abrasion resistance.

Motor Features:

• Motor Construction: Corrosion-resistant stainless steel construction.
• Motor Surge Protection: Built-in surge arrestor is provided on single-phase motors.
• Motor Shaft: Stainless steel splined shaft.
• Motor Windings: Hermetically sealed windings.
• Motor Lead Assembly: Replaceable.
• Motor Mounting: NEMA mounting dimensions.
• Motor Starting Requirements: A control box is required for 3-wire single-phase units. Three-phase motors require a starter with Class 10 overload protection.
