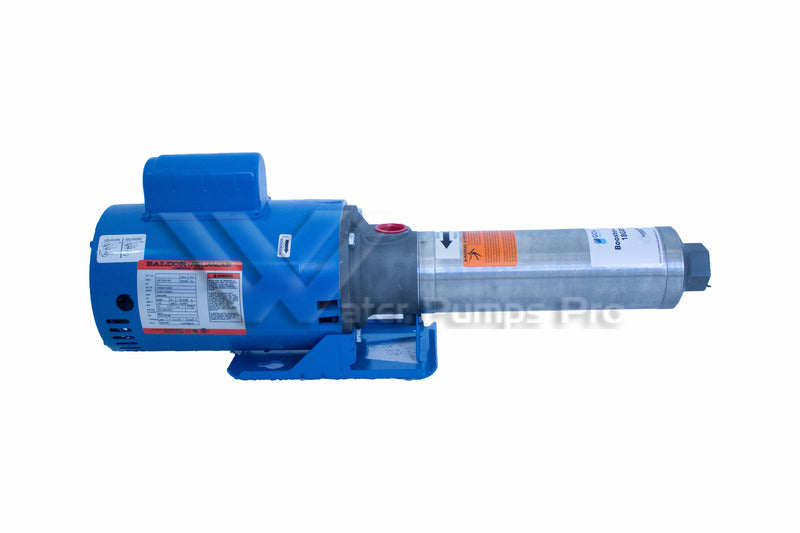

Goulds 33GBS3015N4 Multi-Stage Booster Pump 3HP New Model:[33GBS3017N4]

This item is obsolete.

Goulds 33GBS3015N4 is a stainless steel multi-stage centrifugal booster pump with a best efficiency flow of 33 GPM and 3 HP, 13-stage.

• Part Number: 33GBS3015N4
• Horsepower: 3 HP
• Stages: 13
• Housing Material: Stainless Steel
• Motor Enclosure: Totally Enclosed Fan-Cooled (TEFC)
• Motor Configuration: Single phase (115/230V), three phase 208-230V (3 HP models, 230V), or three phase (208-230/460V)
• Speed: 3500 RPM, 60 Hz
• Best Efficiency Flow: 33 GPM
• Pipe Connections: 1" NPT Suction and Discharge
• Maximum Suction (Inlet) Pressure: 75 PSI
• Maximum Liquid Temperature: 160°F (71°C)
• Maximum Lift with Foot Valve: 10 ft. (check NPSH curve)
• Rotation: Clockwise, viewed from motor end

Pump Features:

• Multi-Stage Design: Provides steady, quiet, vibration-free operation.
• Optional Stainless Steel Construction: Standard cast iron for general service or stainless for filtration applications.
• O-Ring Casing Seal: Reliable high-pressure sealing with easy disassembly for maintenance or repair.
• Impellers and Diffusers: Glass-filled engineered composite material with a fixed impeller design. High resistance to corrosion and abrasion.
• Bowls: 300 stainless steel rabbit lock for positive alignment with no gaskets required.
• Variable Capacity: Centrifugal pump design permits selection of flow within a range for each size.
• Mechanical Seal: A variety of face materials and elastomers to match application needs.
• Motors: Close-coupled NEMA 56J motors in open drip proof or totally enclosed design. Single phase and three phase available. Ball bearings carry all radial and axial thrust loads.
• Continuous Operation: Designed for continuous operation.

Applications: Residential, commercial, or agricultural pressure washing; reverse osmosis; evaporative cooling systems and misters; booster service; spray systems; water circulation; filtration; HVAC; and general purpose pumping.

Operating Safety Notes:

• GFCI Protection Required: Pumps used on open spray applications must be plugged into electrical service protected by a Ground Fault Circuit Interrupter. Failure to do so may result in serious personal injury or death and property damage.
• Do Not Run Dry: Do not run the pump dry or below its minimum rated flow.
• Prime Before Starting: If positive suction pressure is not available, be sure the pump and suction line (with foot valve) are primed before starting the pump.
