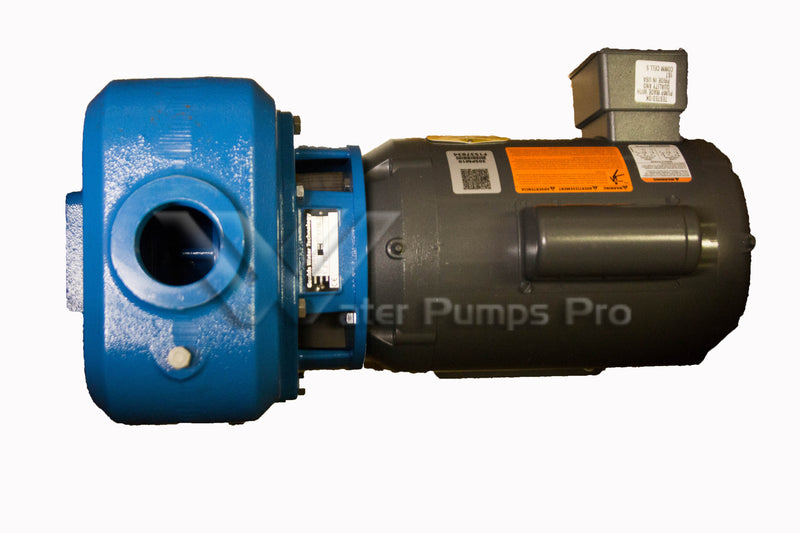

Goulds 30SPM40 Self Priming Pump 3 HP 208-230/460 3 Phase TEFC New Model:[30SPM90]

This item is obsolete

Goulds 30SPM40 Self Priming Medium Head Pump 3 Horsepower, 208-230/460 Volts, TEFC Enclosure, Three Phase FEATURES Self Priming Design: Features a replaceable check valve which acts to retain sufficient liquid in the casing to assure fast, reliable priming and repriming capabilities. Once initially primed the pump will reprime automatically. Impeller and Wear Ring: Silicon Bronze construction, replaceable wear rings extend pump life, designed for maximum efficiency and repriming capabilities. Impeller is enclosed type, balanced for smooth operation, keyed to motor shaft. Casing and Diffuser: Cast iron construction, featuring a back pull out design with tapped connections provided for casing fill and drain to simplify pump start up and removal at the end of the season. Top accessible pump feet for easy access to hold-down bolts. Casing o-ring sealing simplifies maintenance. Shaft Sleeve: 300 series stainless steel replaceable sleeve provides motor shaft protection. Mechanical Seal: Carbon/Ceramic faces, BUNA elastomers, 300 series stainless steel metal parts. APPLICATIONS Lawn irrigation Dewatering Liquid transfer Plot irrigation Livestock watering SPECIFICATIONS Pump Flows to 240 GPM Heads to 165 feet Reprime capabilities to 25' 2" through 3" suction 1-1/2" through 2-1/2" discharge Maximum temperature 160 F Motor NEMA standard, JM shaft, Open Drip Proof or Totally Enclosed Fan Cooled. Single phase: 3 HP, 115/230 V; 5 HP, 230 V. Three phase: 3 and 5 HP, 208-230/460 V or 575 V. Note: Pump is not rated for 50 Hz service.
