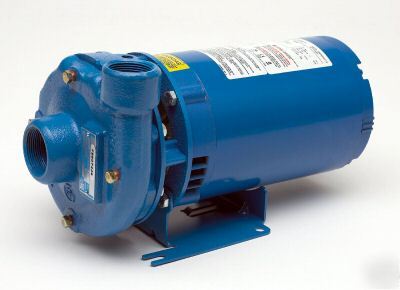

Goulds 2BF12034 Closed Coupled Centrifugal Pump – 2 HP, Three Phase, 208-230/460V, Bronze Fitted, ODP
See price in cart
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
The Goulds 2BF12034 is a 2 HP close-coupled centrifugal pump from the Goulds 3642 line, sized 1-1/4 x 1-1/2 - 5, in bronze fitted construction with an open drip proof motor. It runs on 208-230/460V, three phase, 60Hz, 3500 RPM power.
- Horsepower: 2 HP
- Phase: Three Phase
- Voltage: 208-230/460V, 60Hz, 3500 RPM
- Enclosure: Open Drip Proof
- Construction: Bronze Fitted (BF)
- Pump Size: 1-1/4 x 1-1/2 - 5
- Suction Connection: 1-1/2" NPT
- Discharge Connection: 1-1/4" NPT
- Impeller Diameter: 5"
- Motor Frame: NEMA 56
- Maximum Working Pressure: 125 PSI
- Temperature Rating: 212°F (100°C) with standard mechanical seal
- Shipping Weight: 68 lbs
- Rotation: Right hand (clockwise when viewed from motor end)
Construction & Features:
- Design: Close coupled, space-saving design -- no flexible coupling or bedplate required. Can be mounted in vertical or horizontal position.
- Casing: Cast iron, ASTM A48 Class 20, volute type, back pull-out design; discharge can be rotated in eight positions (standard vertical shown); tapped openings for priming, venting, and draining
- Impeller: Bronze, ASTM B584 C87500 (lead-free), enclosed design for high efficiency, threaded directly onto the motor shaft, balanced for smooth operation. Stainless steel impeller locknut on three-phase models requires no clearance adjustments.
- Adapter: Cast iron, ASTM A48 Class 20
- Shaft: Stainless steel motor shaft carries the impeller directly (no separate pump shaft)
- Mechanical Seal: Standard carbon/ceramic faces, BUNA-N elastomers, 300 series stainless steel metal parts (Seal Type 6, P/N 10K10); optional Ni-Resist, EPR, and Viton seal configurations available for elevated temperature or chemical service
- Motor: NEMA standard, close-coupled design; ball bearings carry all radial and axial thrust loads; designed for continuous duty within the motor's working limits. Overload protection and heaters must be provided in a separately ordered starter unit.
Applications: Water circulation, booster service, liquid transfer, spraying systems, jockey pump service, and general purpose pumping.
