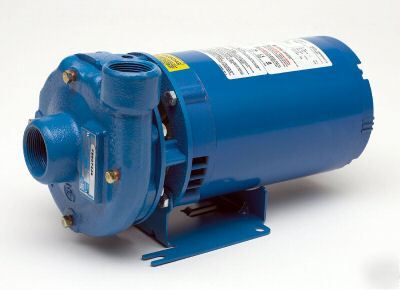

Goulds 2AB31034 Closed Coupled Centrifugal Pump 1HP 3642 G&L
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
The item is obsolete. Contact us for replacement
The Goulds 2AB31034 is a 1 HP close-coupled centrifugal pump from the G&L 3642 series, built in all-bronze construction with a explosion-proof (XP) three-phase (208/230/460V) motor and a 3-5/8" impeller. It is a frame-mounted, back pull-out design with a 1-1/4" NPT suction and 1" NPT discharge, rated to 110 GPM and 118 feet of head. The explosion-proof motor is intended for hazardous-duty or classified installations.
- Horsepower: 1 HP
- Voltage / Phase: 208/230/460V, 3-Phase
- Motor Enclosure: Explosion-Proof (XP)
- Impeller Diameter: 3-5/8"
- Construction: All Bronze
- Seal Type: Carbon/ceramic mechanical seal, BUNA elastomers, 300-series stainless steel
- Capacity: Up to 110 GPM
- Total Head: Up to 118 feet
- Max Working Pressure: 125 PSI
- Speed: 3500 RPM, 60 Hz
- Suction Size: 1-1/4" NPT
- Discharge Size: 1" NPT
Applications: Typical uses include water circulation, booster service, liquid transfer, spray systems, jockey pump duty, and other general-purpose pumping applications.
