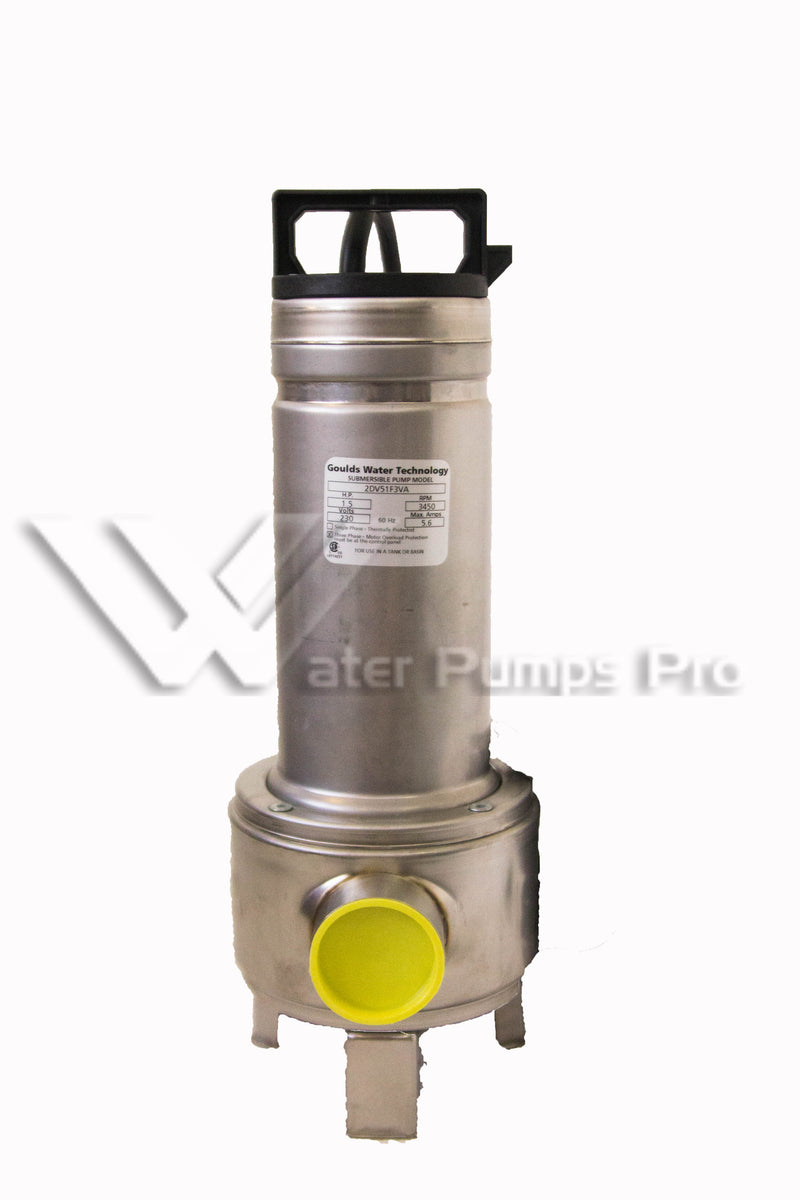

Goulds 1DV51C1VA Submersible Sewage Pump SS 1/2HP 230V 1PH 1.5"
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
The item is obsolete. Contact us for replacement
The Goulds 1DV51C1VA is a 1/2 HP stainless steel submersible sewage pump rated 230V, 1 Phase, built for small lift stations, drainage systems, and residential or light commercial sewage handling. It has a 1-1/2" NPT discharge and handles solids up to 1-3/8" in diameter.
- Horsepower: 1/2 HP
- Voltage / Phase: 230V, 1 Phase
- Max Amps: 4.2
- Starting Amps: 26.3
- Capacity: Up to 175 US GPM (41 m3/h)
- Total Head: Up to 47 ft TDH (14 m)
- Max Solids: 1-3/8" (larger sizes in this series handle up to 2")
- Discharge Size: 1-1/2" NPT (2" NPT on larger HP models in this series)
- Construction: AISI 304 stainless steel casing, impeller, shaft, motor shell, and lifting handle
- Seal Type: Drive-lube silicon carbide mechanical seal, AISI 300 series stainless steel metal parts, BUNA-N elastomers, running in a protected oil chamber
- Motor Speed: 3450 RPM, 60 Hz
- Max Submergence: Up to 17 ft (5 m)
- Temperature Rating: 104 F (40 C) continuous, 140 F (60 C) intermittent
Applications: Residential and farm sewage systems, mobile home parks and motels, schools and hospitals, municipal package systems, industrial treatment systems, and general dewatering applications.
