Goulds 1AI50534 Closed Coupled Centrifugal Pump 1/2HP 3 Phase
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
The item is obsolete. Contact us for replacement

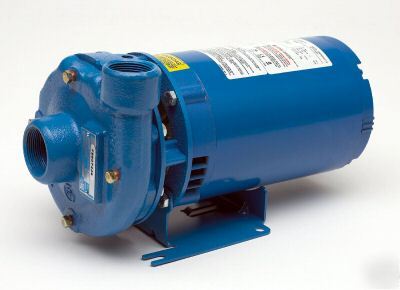

The Goulds 1AI50534 is a 1/2 HP three-phase closed-coupled centrifugal pump from the Goulds (G&L) 3642 series, built in All-Iron (cast-iron impeller and casing) construction with a TEFC (Totally Enclosed Fan-Cooled) motor, fitted with a 3.1875 in diameter enclosed impeller for high efficiency. The close-coupled design mounts the impeller directly on the motor shaft to save space, and the cast volute casing supports back-pullout servicing with a discharge that can be rotated to eight positions. Motor voltage is 208-230/460V, 60 Hz, 3500 RPM.
- Pump Series: Goulds (G&L) 3642 Closed-Coupled Centrifugal
- Horsepower: 1/2 HP
- Phase: Three-Phase, 208-230/460V, 60 Hz
- Motor Enclosure: TEFC (Totally Enclosed Fan-Cooled)
- Construction: All-Iron (cast-iron impeller and casing)
- Impeller Diameter: 3.1875 in
- Max Capacity: Up to 110 GPM
- Max Head: Up to 118 ft
- Max Working Pressure: 125 PSI
- Speed: 3500 RPM, 60 Hz
- Mechanical Seal: Carbon/ceramic faces, BUNA elastomers, 300-series stainless steel
Applications: Typically used for general-purpose water circulation, booster service, liquid transfer, spraying systems, jockey-pump duty, and similar light commercial/industrial pumping tasks.
