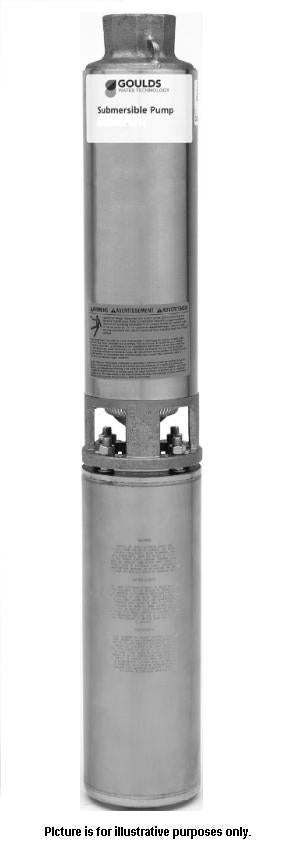

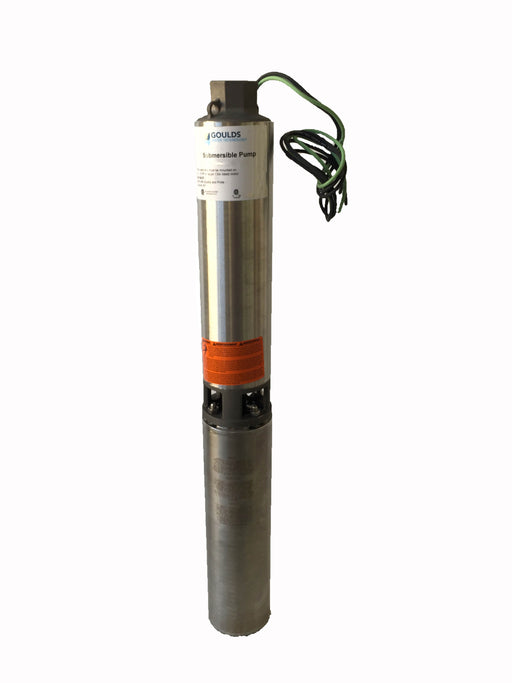

Goulds 10LS10422C 10GPM Submersible Water Well Pump 1HP 230V New Model:[10GS10422C]

This item is obsolete.

Goulds 10LS10422C 1HP Submersible Water Well Pump and Motor, 10 Gallons per Minute, 12 Stages, 230V, 2 Wire.

• Part Number: 10LS10422C
• Flow Rate: 10 GPM
• Horsepower: 1 HP
• Stages: 12
• Voltage: 230V
• Wiring: 2-Wire
• Motor: Included

Pump Features:

• Powered for Continuous Operation: All ratings are within the working limits of the motor as recommended by the motor manufacturer. Pump can be operated continuously without damage to the motor.
• Field Serviceable: Pump can be rebuilt in the field to like-new condition with common tools and readily available spare parts. Note: the pump has left-hand casing threads.
• Sand Handling Design: Face-clearance, floating impeller stack has proven itself for over 40 years as a superior sand-handling, durable pump design.
• Stainless Steel Metal Parts: AISI types 302, 303, and 304 are corrosion resistant, non-toxic, and non-leaching.
• FDA Compliant Non-Metallic Parts: Impellers, diffusers, and bearing spiders are constructed of glass-filled engineered composites. They are corrosion resistant and non-toxic.
• Discharge Head: High-profile cast lead-free silicon bronze for superior strength and durability. Cast-in loops for safety line.
• Motor Adapter: Cast lead-free silicon bronze is extremely rigid for accurate alignment of liquid end to motor. Generous space for removal of motor mounting nuts with a regular open-end wrench.
• Bowls: Stainless steel for strength and abrasive resistance.
• Check Valve: Screws into discharge head from the top, easily removed for drain-back systems or replacement without disassembling the pump. Spring-loaded, o-ring poppet design for a positive seal in all conditions.
• Stainless Steel Casing: Polished stainless steel is strong, attractive, and corrosion resistant.
• Hex Shaft Design: Six-sided shafts for positive impeller drive.
• Shaft Coupling: Exposed for ease of field alignment to motor shaft and to check pump rotation.
• Engineered Polymer Bearings: The proprietary, engineered polymer bearing material is extremely strong and highly resistant to abrasion and wear. The enclosed-design upper bearing is mounted in a durable Noryl bearing spider for excellent abrasion resistance.
