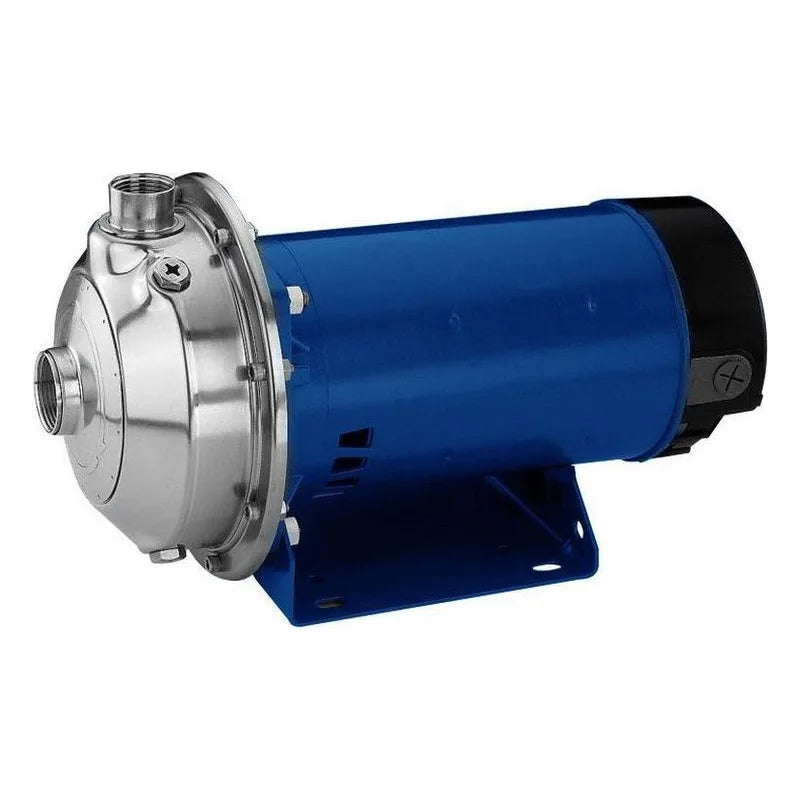

Goulds 100MS1E5C0 1 HP 208-230/460V Three-Phase MCS End Suction Centrifugal Pump - 1 x 1-1/4 - 6 in., Stainless Steel, 3500 RPM, 1-1/4" NPT x 1" NPT, TEFC Motor

Goulds Water Technology MCS End Suction Centrifugal Pump - Model 100MS1E5C0

Key Specifications

• Model Number: 100MS1E5C0
• Pump Size: 1 x 1-1/4 - 6 in.
• Horsepower: 1 HP
• Voltage: 208-230/460V
• Phase: Three-Phase
• Speed: 3500 RPM, 60 Hz
• Suction Connection: 1-1/4" NPT
• Discharge Connection: 1" NPT
• Impeller Diameter: 5-3/16" (code C)
• Rotation: Clockwise viewed from motor end

Motor

• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Frame: NEMA standard square flange
• Shaft and Bearings: Stainless steel shaft with ball bearings
• Duty: Continuous duty
• Overload Protection: Must be provided in the starter (starter and heaters sold separately)

Construction

• Casing: Stainless steel with NPT threaded centerline connections; stainless steel vent, prime and drain plugs
• Impeller: Enclosed stainless steel with floating seal ring design
• Liquid-End Components: AISI 304 and 316L stainless steel
• Mechanical Seal: John Crane 5/8" seal - carbon / ceramic faces, BUNA elastomers, stainless steel metal parts

Operating Limits

• Maximum Temperature: 212°F (100°C)
• Working Pressure: Up to 75 PSIG standard seal; 125 PSIG with optional seals
• Series Capacity / Head: Up to 170 GPM / 150 ft at 3500 RPM

Features

• High-efficiency enclosed impeller maintains efficiency without adjustment
• NSF/ANSI 61 and 372 certified when assembled at the factory (BUNA seal versions are not NSF certified)
• Premium-efficiency motors where required by DOE regulations

Applications

• Water circulation and booster service
• Liquid transfer and spray systems
• Chillers, heat exchangers and filtration systems
• Washing / cleaning systems and general water services
