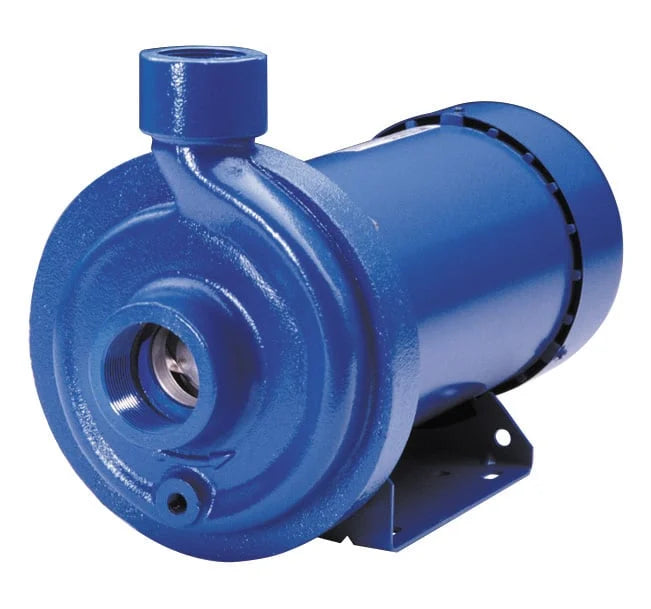

Goulds 100MC1H4A0 3 HP 230V Single-Phase MCC End Suction Centrifugal Pump - 1 x 1-1/4 - 6 in., Cast Iron, 3500 RPM, 1-1/4" NPT x 1" NPT, TEFC Motor
See price in cart
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Goulds Water Technology MCC End Suction Centrifugal Pump - Model 100MC1H4A0
Key Specifications
- Model Number: 100MC1H4A0
- Pump Size: 1 x 1-1/4 - 6 in.
- Horsepower: 3 HP
- Voltage: 230V
- Phase: Single-Phase
- Speed: 3500 RPM, 60 Hz
- Suction Connection: 1-1/4" NPT
- Discharge Connection: 1" NPT
- Impeller Diameter: 6-1/8" (code A)
- Rotation: Clockwise viewed from motor end
Motor
- Enclosure: Totally Enclosed Fan Cooled (TEFC)
- Frame: NEMA standard square flange
- Shaft and Bearings: Stainless steel shaft with ball bearings
- Duty: Continuous duty
- Overload Protection: Built-in, auto-reset
Construction
- Casing: Cast iron with NPT threaded centerline connections; accessible vent, prime and drain ports
- Impeller: Enclosed AISI 316L stainless steel
- Seal Housing: AISI 316L stainless steel
- Mechanical Seal: John Crane 5/8" seal - carbon / ceramic faces, BUNA elastomers, stainless steel metal parts
Operating Limits
- Maximum Temperature: 212°F (100°C)
- Working Pressure: Up to 75 PSIG standard seal; 125 PSIG with optional seals
- Series Capacity / Head: Up to 180 GPM / 156 ft at 3500 RPM
Features
- High-efficiency enclosed impeller maintains efficiency without adjustment
- NSF/ANSI 61 and 372 certified when assembled at the factory (BUNA seal versions are not NSF certified)
- Premium-efficiency motors where required by DOE regulations
Applications
- Water circulation and booster service
- Liquid transfer and spray systems
- Chillers, heat exchangers and filtration systems
- Washing / cleaning systems and general water services
